High Quality Plastic Household Bottles Blow Molding Machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Bottle
Plastic Processed	PE	Blow Moulding Type	Extrusion Blow Moulding
Automatic	Yes	Place of Origin	Jiangsu, China
Brand Name	APOLLO	Model Number	ABLB75
Voltage	380v	Power(W)	32.5kw
Dimension(LWH)	3.6 1.8 2.8	Weight	5.2ton
Certification	CE	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

High speed plastic household blow molding machine
Auto deflashing unit
Parison control system
Energy saving type

High speed HDPE bottles jerry cans blow molding machine

Cosmetic bottles making machine

Plastic bottle blow molding machine

Chemical bottles jerry cans producing machine

Automatic Plastic bottles jerry cans blow molding machine HDPE

Products:

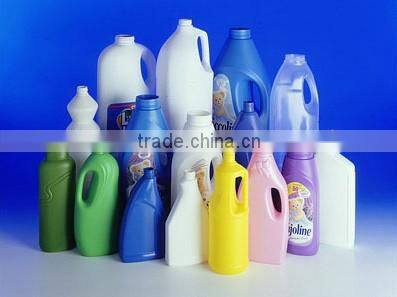

This type of machine is suitable to produce different shapes of plastic bottles from 50ml to 5L.

Adopt Mitsubishi PLC from Japan

Contactor use Schneider from France

Most of spareparts of hydraulic system and pneumatic system are imported from Japan,Korea,France and Taiwan,china to ensure the quality of the machine

Related technical parameters:

Technical Parameters: ( ABLB75)

Basic parameters	Suitable material	PE.PP,PVC,PS,PETG,so on
	Max volume	8L
	Output capacity
	Size	3.6×1.8×2.8(M)
	Weight	6.3T
system	Specification	Parameters	Note
Plasticizion system	Summarize	High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
	Reducer	Hard finishing,High intension,Low noise reducer
	Screw	75mm,L/D ratio 24, 38CrMoALA	Cooling system
	Plasticization	100Kg/H	HDPE
	Heating Zone	3-4 Aluminum Heater	Automatic heating
	Heating power	7KW/H
	Extrusion Motor	Three phase asynchronous motor (380V,50HZ)
	Cooling Fan	3-4zone	Automatic cooling
Extrusion system	Summarize	High-grade alloy steel, center feeding
	Die head number	1
	Center distance of die heads	As per your sample
	Max die mouth	90mm
	Heating zone	3-4 Stainless steel heating cycle
	Heating power	2~5KW
Clamping system	Summarize	High intension, rigidity, center mold locking, stable mould opening and clamping system
	Clamping force	80KN
	Template distance	148~600mm
	Max mould size	400X450mm
Electric system	Summarize	PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)	Japanese Mitsubishi PLC system
	Operate interface	Touch screen, automatic self-diagnose alarm system
	Temperature control	Automatic temperature control module
	Movement control	Japanese Mitsubishi, Chinese/English Version
	Electric protection	Ampere overload, electric short circuit self-protection function
Hydraulic system	Summarize	Multiple function hydraulic integrated block Proportional control, high efficient
	Oil pump motor	Three phase asynchronous motor (380V/220V,50/60HZ)
	Oil pump	Imported double pump
	Valves	Imported oil pump valves and connections
	Oil pipes	Double layer overpressure resistant
	System pressure	60Kg/cm²
	Cooling system	Separate water cooling cycle, oil cooler cooling system
Pneumatic system	Summarize	Taiwan AIRTAC pneumatic system
	Air pressure	0.6Mpa
	Air displacement	0.8M3/min
	Electromagnetic valve	Taiwan AIRTAC
Cooling system	Summarize	Separate cooling system of mould, barrel and oil system
	Cooling medium	Water
	Water flow	80L/min
	Water pressure	0.3-0.6MPa
