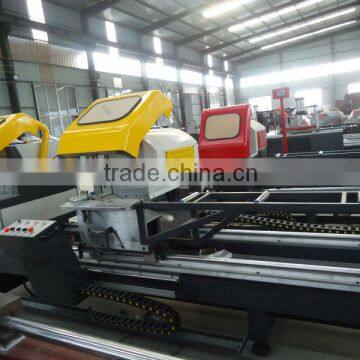

aluminum window machinery aluminum cutting saw

Specifications

    Aluminum window machinery.

    The imported numerical control system with numerically controlled cut length ensures precise dimensions, the imported ball screw shaft drives the machine head to move horizontally with high precision of repeated positoning. A series of optimal length data can be inputted at the same time to realize continuous cutting in series, the machine adopts imported specialized saw blades for stiff alloys, imported linear guide reil pairs as cutting feed guide rails, and hydraulic damping cylinder to drive the feed of saw blades, The processing range is wide, with cut length up to 4200 mmand cut angles of 90º45º22.5º,The switchover between three angles is automatic..

Operation air pressure:   0.4~0.6Mpa
Power supply:                 380V 50Hz
Cutting motor power:      2.2kw×2
Blade rotational speed:  3100 r/min
Saw blade specification: D=500mm d=30mm
Cutting length:                 Min380mm Max4200mm
Cutting angles:                90°45°22.5°67.5°
Contour dimension:        (L×W×H)5500×1750×1990mm
Weight:                           about1900kg
