Insulation Glass Machinery / Vertical Insulating Glass Automatic Flat Press Produce Line / Double Glass Process Line (LB1800P)

Condition	New		Machine Type	Insulating Glass Production Line
Place of Origin	Shandong, China		Brand Name	Better
Model Number	LB1800P		Voltage	380V/50Hz
Power(W)	23.07KW		Dimension(L*W*H)	15300X2200X2800mm
Weight	6000kg		Certification	CE
Warranty	one year		After-sales Service Provided	Engineers available to service machinery overseas

Specifications

Double Glass Process Line
duction slot-alu insulating/double glass
2.PLC control
3.Flat/Plate press
4.Automatic

Insulation glass machinery / Vertical Insulating Glass Automatic Flat Press Produce Line / Double Glass Process Line (LB1800P)

Vertical Insulating Glass/Double Glass/Hollow Glass Automatic Flat Press Produce Line



Double glass production line machines/Double Glazing glass production line machines/Insulating glass production line machines/Insulated glass making line/Vacuum glass processing line machines/Hollow glass productoin line machines/Double glazed glass machinery



1.Product Description

1).The line is special equipment making aluminum groove type insulating glass, which consist of a vertical glass washing machine, a setting aluminum frames, one on one by flat press and a turning table.



2).It can perform main functions such as washing and drying of insulating glass, positioning of aluminum frames, automatic one on one by flat press, setting level and shifting out of insulating glass and so on in the process of making aluminum groove type insulating glass.



3).This line is high in efficiency, low in energy consumption, compact in structure and easy to operate.



4).Features:

A. Washing part is with 3 pairs(6 pieces) washing brushes. Three pair of brushes is well known for its fine quality and durable in use. They can wash Low-E glass.



B. Automatically distinguish the coating side of coated glass and Low-E glass.



C. Adopt waterproof bearing without oil lubricant.



D. The washing body adopts stainless steel and anti-rusting materials.



E. The PLC and other electric elements adopt OMRON brand, import from Japan.



5).It can process the common glass, coated glass,low-E glass,etc..



6).We have models LB1600P,LB1800P,LB2200P,LB2500P, here the model LB1800P is the common model for the max.glass size is 2500*1800mm(Length*Height), if your glass ma.size is smaller or larger than the model LB1800P, you can choose other models according to your true glass size.





7).Before you buy the machine, please make sure then tell me your local power supply,then we can make the right according to your true voltage.



Kindly and friendly inform:

we have skilled engineers with well English ability in this field about 20 years, they can directly to give you any help on machines by calling or by video link or by email in short time, and before our machine reach your workshop, if you need we help you to design a drawing that tell you all machines should how to place in your workshop ,we can help you to give you a drawing to give you suggestion in short minutes; and if you need we suggest you how many Squaremeters workshop is better for you, you can tell us your plan production, then we can tell your how many machines you needs, then tell you how much Squaremeters workshop is better for you.



2.Technical parameters

Model number	LB1800P
Power voltage	380V/50Hz
Total power	23.07Kw
Min glass size(L*H)	400*200mm
Max glass size(L*H)	2500*1800mm
Max.Insulating glass thickness	50mm
Max. thickness of insulating glass	3mm-25mm
Working speed	Max. in washing section 12m/min
	Max. in accelerator 48m/min
Brush	3pairs (LOW-E)
Overall dimensions	15300×2200×2800mm
Net weight	6000kg





3.All Insulating glass production line models



4.Insulating glass/double glass/hollow glass good advantages

1).sound insulation, noise reduction

2).keep warm

3).dust prevention

4).reduce thermal radiation

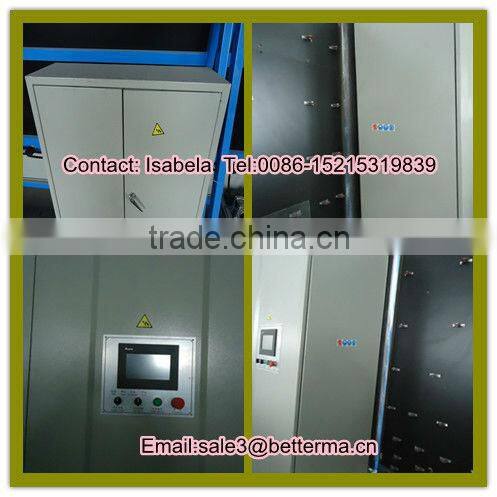

5.Detailed photos



6.Insulating glass production line Features

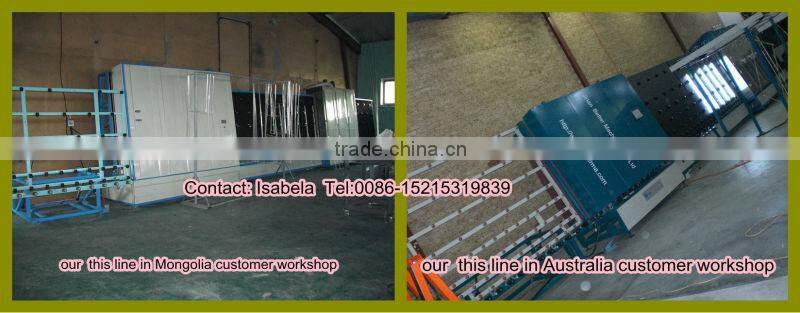

7.Machine in our oversea customer workshop





8. Related insualating glass processing flow chart



1).If your factotary is big production plan, here you can choose these following machines



2).If your factotary is common production plan, here you can choose these following machines:



Besides you buy the basic vertical production line, you also need to add some accesary machines, such as Butyl extruder machine, two component coating machine, alu-spacer cutting saw, glass adge polishing machine etc.





About the full insulating glass production steps, here I can give you a brief introduction for your reference:





If you want to save some cost about the vertical production line, you can consider to by these basic machines is enough:



1).insulating glass/double glass/hollow glass production line, model: LB1800P



2). Butyl glue extruder machine, model : JT01



3).Two component glue coating machine, model: ST01





4).Rotary coating machine, model: SZT01 (this machine together work with the two component glue coating machine)



5).Glass edge polishing machine, model: SM95

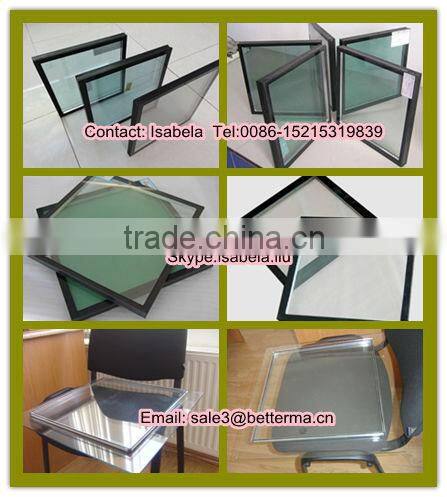

9.Insulating glass/double glass/hollow glass/vacuum glass products sample

10.Insulating glass/double glass/hollow glass structure

(Here the Polysuifide glue can replaced by Silicon glue or hot melt sealant glue)



11. Contact information



12.After-sale service



1). We will provide all spare parts needed for maintenance of the equipments.

2). During the period of guarantee, within TWELVE(12) months, the seller we will be responsible for the damage due to the defects in designing and manufacturing.

3).If you need installation, please inform us, we can send engineer to your factory to install and test machines for you.



WHY YOU CHOOES US Question AND Answer (If you see same 100% description in other company website on alibab, they copy us, please kindly check and compare.)



1.Question:Are your manufacture?

Answer:we are manufacture of the PVC window door machine, Aluminum window door machines, insulating glass machines.



2.Question:What’s the costomer service ?

Answer:

1).reply within 12 hour

2).deliver max. days within 15 days (If some machines, such as the lock hole milling machine,end milling machine,etc. this is small model, we have in store, and can delivery for you soon within 3-5 days after get your deposit)

3).one to one service

4).24 hours for after -sale serive

5).7 years experience in foreign trade

6).fluent english ,communication barrier free





3.Question:What’s the guarantee ?

Answer:

1).Our guarantee for 1 year.

2).24 hour’s technical support by email or calling

3).English manual and video tutorial

4).one year quality guaranty for the machine (excluding the consumables)

5).We will provide the consumable parts at an agency price

6).24 hours on line service each day, free technical support.



4.Question:if our price is higher than another company or factories ?

Answer:

plaese check, what is is the different of the machine parts ,service and guarantee,especially the machine inner electric parts, sometimes, if machines have breakdown, the most reason is the machine inner electric parts proble, we use the world famous brand parts to install to machines inner, so that can sure you can use the machines very long long years.

belive you will chooes the same value of the machine, not cheaper equipement



5.Question:How long is the delivery time ?

Answer:

For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.



6.Question:How's the payment ?

Answer:

Telegraphic Transfer(T/T). or L/C. (If you want by west union, it is also ok.)
