Home > Products > Wool production equipment > PROFESSIONAL WOOL CARDING MACHINE,CHINESE TEXTILE MACHINE
PROFESSIONAL WOOL CARDING MACHINE,CHINESE TEXTILE MACHINE
- Main port in china
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Dacheng | |
| Model Number | FN206 |
Product Description
Specifications
CHINESE WOOL CARDING MACHINE+Wool Tops of Given Counts Making
+Cost Saving&High Yield
+Professional&Efficient
+Hot One
PROFESSIONAL CHINESE WOOL CARDING MACHINE
Application
This machine is used to further open,purge,blend and card the primarily blent, opened and oiled cashmere,wools and mixed fibre into filaments,with the reasonable configuration of the running direction,the needle direction and the linear surface velocity of Cylinder,Doffer,working roller and stripping roller.At the same time it can remove fine trashes and weak spots on the fibres,condense hem into a layer of continuous webs of even thickness,and then divide them up into small tops of certain weight(i.e,woolen yarns) for the spinning frame.
Main technical paremeters
Type | Upstriker half- circular |
Model | Left-handed(all the driving parts on the left side) |
Breadth | 2000mm |
Applicable material range | (1)Wool or rabbit hair length 30~90mm,the quality number 50s~90s (2)The chemical fibre length 30~80mm with fineness 3D~17D,.blent with wool or rabbit hair |
Suitable tops for | 8~24s |
Feeding form | Electronic weighing,chute vibrating continuous feeding |
Weighing frequency | 1.2~3 times/min(usually) |
Amount per feed | 150~500g |
Feeding unevenness | 0.7~1.4% |
Stripping form | Stripper bar |
Delivery traverse form | Winding roller traverse and coil into wool cakes. |
No. Of wool tops delivered | 200pcs |
Delivery speed | Max. 50m/min,usually 15~30m/min |
Wool laps number | 8pcs |
Driving form | Synchronous driving |
Total power | 31.39Kw(not including the feeder motor) (1)Main motor Y200L2-6,22Kw,978rpm,1 set (2)Trash extraction chute motor:FW092-4,180W,1300rpm ,2 sets (3)Suction motor:1.1Kw ,1 set (4)Servo motor:A1-5634,180W ,1set (5)Protective cover motor:A1-5632,250W,2730rpm,9 sets. |
Overall dimensions | 26179*3660*3785mm(not include the shift distance) |
Machine weight | 68 tons |

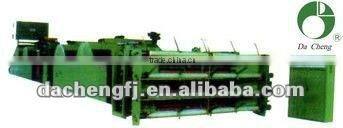

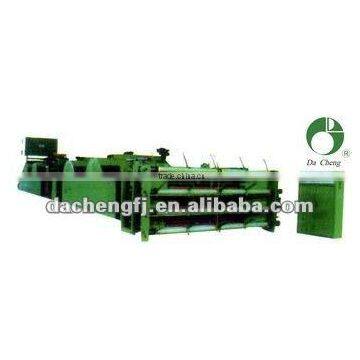

Picture show
