Model FZL426 Chain Type Gilling Machine,Textile Machinery For Short Flax,Long Ramie Spinning
- ShangHai
- T/T Credit Card
You May Like
-
Model FZL435 Chain Type Gilling Machine,Gill Box For Short Flax,Long Ramie Spinning
-
Model FZL445 Chain Type Gilling Machine,Gill Box For Short Flax,Long Ramie Spinning
-
Model FZ473 Twistless Roving Machine,Roving Frame
-
FZL445 Chain Type Gilling Machine,Gill Box For Short Flax,Long Ramie Spinning
-
High-Speed Gill Box,Spinning Machine(Based On France NSC)
-
FXL315 Chain Link Gill Machine for Short Flax, Long Ramie Fiber Spinning
Product Details
| Condition | New | Type | Gilling Machine | |
| Place of Origin | Jiangsu, China | Brand Name | DACHENG | |
| Model Number | FZL426 | Spinning Method | Ring Spinning | |
| Automatic | Yes | Certification | ISO9001 |
Product Description
Use
With the sliver discharging speed reaching up to 250m/min and the front ratch being 39-63mm.Model FZL426 Chain Type Gilling Machine,Textile Machinery is applicable to large batch flax(ramie)short hemp spinning process.
Characteristics
Equipped with frequency converter,PLC,touch screen,automatic controller,etc,and convenient to operate and maintain.FX/FXL FZ/FZL series gill boxes are ideal model for flax(ramie) short hemp spinning enterprises's choice.
Technical Process
Hackling machine-FZ/FZL223(re-cutting-FZ/FZL314-FZ256(combing)-FZ/FZL415-FZ/FZL426-FZ/FZL435-FZ/FZL445,FZ473(roving).
FZL series linen fault spins needle combing machine main specifications and technical parameters
| FZL series linen fault spins needle combing machine main specifications and technical parameters | |
| Item/Model | FZL426 |
| Giving-needle 2 | |
| Output slicer quantity (root) | 1 |
| Feed-in sliver quantity(root) | 10 |
| Feed-in sliver can's specification(mm) | Φ700*1000 |
| Output sliver can's spcification (mm) | Φ700*1000 |
| Maximum Feed-in weight (g/m) | 240 |
| Maximum output sliver weight (g/m) | 25 |
| Carding mode of the carding box | chain type |
| Special rod (diameter*head distance*pitch) | 9.525-3*72 |
| Needle bar qty (Block) | 72 both left and right sides |
| Needle bar specification(mm) | 332*13.5 |
| Needle density (Needle/cm) | 4 |
| Needle hitting times (times/min) | 5000 |
| Front roller sliver discharging speed (m/min) | 250(Normally open200) |
| Drafting multiple | 4.4-12.7 |
| Front roller spacing (mm) | 39-63 |
| Self-leveling apparatus | Yes |
| Front roller specification (mm) | Φ62.5/Φ30 |
| Front leather roller specification(mm) | Φ80 |
| Rear roller specification (mm) | Φ62.5 |
| Rear pressurized leather roller specification(mm) | Φ80 |
| Front roller pressurized mode | pneumatic |
| Rear roller pressurized mode | pneumatic |
| Main electrical machinery power(kw) | 5.5 |
| Dust collecting motor's power(kw) | 3 |
| Frequency converter's specification | 3G3RV-A4055 |
| overall dimension (L*W*H)(mm) | 7861*1880*1981 |

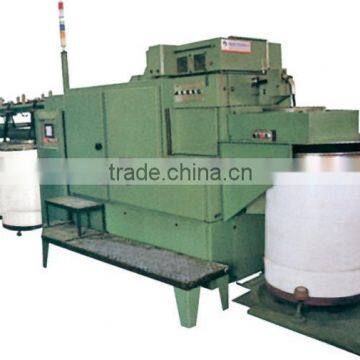

Picture Show
