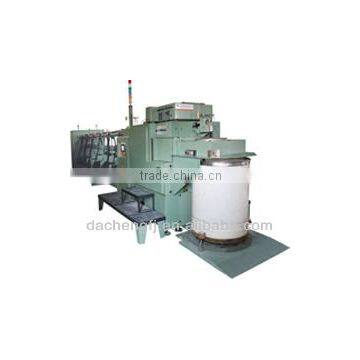

Gill Box (worsted Fore-spinning)/ Chain Gill Box/spinning Machine in Wool Spinning
- shanghai
- T/T L/C D/P D/A Credit Card
You May Like
-
Wool Fore-spinning Process/spinning Machine/Chain Link Type Gilling Machine (Wool Spinning) FBL415 Gill Box
-
Textile Machinery Gill Box/ High Speed Effective NSC Gill Box,Gilling Machine,Spinning Machine(worsted,fore-spinning) FBL426
-
Wool Fore-spinning Process/textile Spinning Machine/chain Link Type Gilling Machine (wool Spinning)FBL445 Gill Box
-
NSC Gill Box/Roving Frame(worsted Fore-spinning)
-
FB473 NSC Wool Roving Frame/ Twistless Roving Frame
-
Wool Spinning Machine/twistless Roving Frame
Product Details
| Condition | New | Application | It is applied in worsted fore-spinning | |
| Type | Gilling Machine | Place of Origin | Jiangsu, China | |
| Brand Name | dacheng | Model Number | FBL415 | |
| Spinning Method | Ring Spinning | Automatic | Yes | |
| Dimension(L*W*H) | 8006*1880*1981 | Certification | CE&ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.FBL415 Gilling Machine2.CE & ISO Certificate
3.High Performance-price Ratio
4.High Quality
5.NSC Spinning Machine
Use:
With the sliver discharging speed reaching 250m/min, and the front ratch being 39-63mm. FBL415 chain Gilling Machine,Gill Box,Spinning Machine is especially applicable to large batch wool fore-spinning process and are used for the pure spinning and spinning of low,medium and high-count imitation wool and fiber.
Equipped with frequency converter,PLC,touch screen,automatic contuoller,etc,and convenient to operate and maintain.
Application of FB/FBL series in the technical process of wool fore-spinning:
FB/FBL415(Sliver mixing with wool oil)→FB/FBL426(First step gill box) →FB/FBL435(Second step gill box) →FB/FBL445(third pass)→FB473(Roving frame)→Spinning frame (for spinning low,medium count yarn).
FBL series wool spinning spins needle front combing machine main specifications and technical parameters
| ItemModel | FBL415 | FBL426 | FBL435 | FBL445 | FBL455 |
| Top mixing | First process | Second process | Third process | Four process | |
| Output slicer quantity(piece) | 1 | 2 | 4 | ||
| Feed-in sliver quantity(piece) | 12 | 10 | 2*4 | 4*3 | |
| Feed-in ball top can's specification(mm) | Φ700*1000 | Φ400*1000 | |||
| Output ball top specification (mm) | Φ500*500 | ||||
| Output sliver can's spcification (mm) | Φ700*1000 | Φ400*1000 | |||
| Maximum Feed-in weight (g/m) | 240 | 200 | 180 | ||
| Maximum output sliver weight (g/m) | 25 | 15 | 7 | 3 | |
| Carding mode of the carding box | Chain type | ||||
| Needle bar specification (mm) | 332*13.5 | ||||
| Needle bar qty (piece) | 72 on both left and right sides | ||||
| Needle density (stiches/cm) | 4(5) | 5(6) | 6(7) | 7(8) | 9 |
| Needle hitting times (times/min) | 5000 | ||||
| Special chain specification | 9.525-3*72 | ||||
| Front roller sliver discharging speed (m/min) | 250(Normally open200) | ||||
| Drafting multiple | 4.4-12.7 | ||||
| Front roller spacing (mm) | 39-63 | ||||
| Self-leveling apparatus | Yes | ||||
| Wool lubricating device | Yes | ||||
| Front roller specification (mm) | Φ62.5/Φ30 | ||||
| Front leather roller specification(mm) | Φ80 | ||||
| Rear roller specification (mm) | Φ62.5 | ||||
| Rear pressurized leather roller specification(mm) | Φ80 | ||||
| Front roller pressurized mode | pneumatic | ||||
| Rear roller pressurized mode | pneumatic | ||||
| Main electrical machinery power(Kw) | 5.5 | 7.5 | |||
| Dust collecting motor's power(Kw) | 1.5 | ||||
| Frequency converter's specification | 3G3RV-A4055 | 3G3RV-A4075 | |||
| overall dimension | 8006*1880*1981 | 7816*1880*1981 | 6368*1880*1981 | 7881*1880*1981 | 8416*2124*2181 |
(L*W*H)(mm) | |||||
