Home > Products > Textile Machinery > Rubber Frame

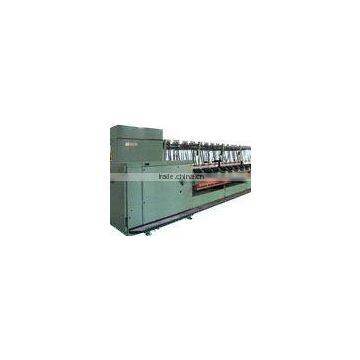

Rubber Frame
Negotiable
/ Set
1 Set(Min. Order)
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | DACHENG | |
| Model Number | FB473 | Use | Spinning Machinery | |
| Type | Bobbin |
Product Description
Company Information
Company Name:ZHANGJIAGANG DACHENG TEXTILE MACHINERY CO.,LTD Address:LUYUAN TANLI ECONOMIC DEVELOPMENT ZONE TANGQIAO TOWN ZHANGJIAGANG CITY CHINA Website: www.dachengfj.en.china.cn Sales Manager:Mr. Steven Liu Tel:0086-512-58352786 Cellphone:0086-13773240991 Skype:jaky5188
Hotmail:milo.ceo Fax:+86-512-58477030P.C.:215616
FAQ
| Model FB473 Roving Frame main specifications and technical parameters | |
| Model | Horizontal |
| Head distance(mm) | 710 |
| Head qty. | 6,8,10(two top-balls for;two lengthes of wool yarn for each ball) |
| Roller diameter(mm) | frontΦ50/Φ25,rearΦ40 |
| Leather roller diameter(mm) | front,rearΦ70 |
| Roller weighting(N) | front600,rear200 |
| Drafting mechanism | Double leather ring |
| Front roller distance(mm) | 330 |
| Rubbing plate (mm) | Top & bottom inside length:L 458.5mm*W158mm*T4mm |
| Winding diameter(mm) | Φ90 |
| Ring bobbin specification (mm) | Φ70*Φ25*Φ243 |
| Number of tops tobe drawn | 1-2(pieces) |
| Feed-in weight(g/m) | =<15( Sliver-can feed-in) |
| Output top weight(g/m) | 0.16-1.5( Ball top output) |
| Drafting multiple | 6.03-17.48 |
| Output top speed(m/min) | 60-180(Normallyopen130) (Frequency converting adjustment) |
| Times of slubbing(c/min) | (Max.)1100 |
| Leather ball dimension(mm) | =<Φ300*200 |
| Motor specification | 11KW 2930r/min |
| Dust collecting motor | 4KW 2890r/min |
| Frequency governor | 3G3RV-4110 |
| Machine weight (kg) | 12(balls) 5100 |
| 16(balls) 6000 | |
| 20(balls) 7000 | |
| Overall dimension(L*W*H )(mm) | 9548*4375*2375(20 balls) |
