Home > Products > 3. LONKING > 6 TON CONSTRUCTION MACHINERY MINI EXCAVATOR

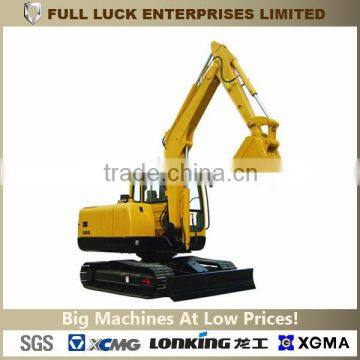

6 TON CONSTRUCTION MACHINERY MINI EXCAVATOR
- Shanghai and any port of China
- T/T L/C Credit Card
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | FULL LUCK MINI EXCAVATOR | |
| Model Number | FL6065 MINI EXCAVATOR | Condition | New | |
| Moving Type | Crawler Excavator | Operating Weight | 6050kg | |
| Bucket capacity | 0.25m3 | Maximum Digging Height | 5965 | |
| Maximum Digging Depth | 3762 | Machine Weight | 6050kg | |
| Max Digging Radius | 6096 | Rated Speed | 2.5-5.0km/h | |
| Certification | SGS | After-sales Service Provided | Overseas third-party support available |
Product Description
6 TON CONSTRUCTION MACHINERY MINI EXCAVATOR
MINI EXCAVATOR
| Specifications | FL6065 | ||
| Engine | Model | Yanmar 4TNV94L-PLK | Yanmar 4TNV98-ZSLK |
| Rated power | 43.3 kW(58.8 hp) /2400 rpm | 46.3 kW(58.6 hp) /2200 rpm | |
| Bore× Stroke | 94mm×110mm | 98mm×110mm | |
| Displacement | 3.054 L | 3.319 L | |
| Min. Fuel Consumption | 220 g/kw.h | ||
| Operating weight | Summary | Operating weight:6050kg The operating weight includes the weight of 3000mm standard boom,1550mm standard arm, | |
| 0.25m3 standard bucket, 400mm track shoes, lubricating oil, coolant, the full diesel oil tank and the rest standard configuration units. | |||
| Ground pressure | 32 kPa | ||
| Fluid capacity | Fuel tank | 134 L | 95 L |
| Cooling system | 15 L | ||
| Engine oil | 10.5 L | ||
| Swing drive unit | 1.2 L | ||
| Traveling gear | 2×1 L | ||
| Hydraulic oil tank | 115 L | ||
| Swing motor | Summary | Plunger Type (with safety valve and closed type brake) | |
| Swing speed | 11 rpm | ||
| Travel motor | Summary | Plunger Type (with safety valve and closed type brake) | |
| Taveling speed | 2.5 -5.0 km/h | ||
| Gradeability | 35°(70%) | ||
| MaximumTraction | 58.3 kN | ||
| Traveling mechanism | Standard track shoe width | 400 mm | |
| No. of track shoe | 39 (each side) | ||
| No. of carrierrollers | 1 (each side) | ||
| No. of track rollers | 5 (each side) | ||
| Hydraulic system | Main pump | Axial variable plunger pump | |
| Max. flow of system | 146 L/min | 156.2 L/min | |
| Max. pressure of equipment | 24.5 MPa | ||
| Max. pilot pressure | 3.7 MPa | ||
| Operating equipment | Each machine action is under the pilot control. | ||
| The right lever controls the motion of boom and bucket while the left lever controls | |||
| the arm motion and upper structure swing. The foot pilot valve is provided with the lever joystick | |||
| to control the machine traveling or turning by the foot or lever. The traveling gear shift adopts the solenoid switch control. | |||
| Electrical system | System voltage:24 V Battery:12 V, 85 A | ||
FULLWON is one of the leading truck and construction equipment distributors and exporter in China.Fullwon cooperates with leading truck manufactures and suppliers of brand name VOLVO, RENAULT TRUCK, SINOTRUCK ,LONKING and ISUZU.
Focus on the oversea market development, Fullwon is the professional exporter for heavy duty trucks, construction equipments,and spare parts in China.To face global markets sales, except complete equipment sales, we pay more attention to technology consultation and after-sale service. Technician overseas market technical guidance and training service, complete and scientific spare parts supply system are provided by us to meet different purchasing requirements from clients.
For secondhand construction equipment exportation business, we provide service including complete painting for equipment, wire sorting for equipment, quick-wear parts sales and so on.
MINI EXCAVATOR
- After-sales Service
- In-house training and workshop
- Technical consultation service
- International Logistics Service
- Purchase solution
- Maintenance Program
- Sourcing service
- 54 items will be inspected including appearance, painting, welding, dimension, major assemblies and cabin.
- Road-testing including the working status of engine, transmission, hydraulic system, electrical system, light system, brake system and so on.
- Spare parts supply
MINI EXCAVATOR will be transported by Ro-Ro , Bulk ,Container,Contrainer frame.
