Home > Products > 3. LONKING > 21.8 TON CHEAP MINI EXCAVATOR

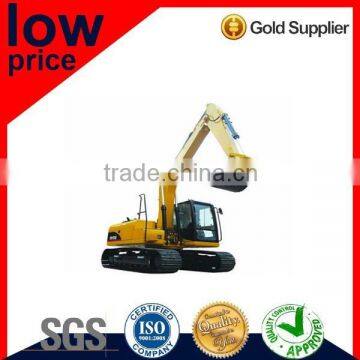

21.8 TON CHEAP MINI EXCAVATOR

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Port Shanghai and any port of China
Payment TermsT/T L/C Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China	Brand Name	FULL LUCK
Model Number	FL6225	Condition	New
Moving Type	Crawler Excavator	Operating Weight	21800kg
Bucket capacity	1.1m3	Maximum Digging Height	9292
Maximum Digging Depth	6570	Machine Weight	21800kg
Max Digging Radius	9879	Rated Speed	3.0-5.2km/h
Certification	SGS	After-sales Service Provided	Overseas third-party support available

Product Description

Specifications

CHEAP MINI EXCAVATOR
a, Engine : Cummins
b, Max. bucket breakout force-ISO(kN):158

For each of our new equipment, we provide pre-delivery inspection to make sure it is fully operational.

1) 54 items will be inspected. Including appearance, major assemblies and cabin.

2)Road-Testing. Including the working status of engine, transmission, air conditioner, lighting system, brake system, accelerating system etc.

3)Logistics Severies

4)Spar part Supply

5)Technology Supply

6)Repairs and Maintenance

Company Information

FULLWON is a comprehensive trading firm integrating truck sale, logistics transportation, import and export trade, parts sale and large scale maintenance center.The large scale service center occupies an area of 15,000 square meters.

Main Parters: Renault, VOLVO, UD, SINOTRUK, ISUZU

Product Description

Specifications			CDM6225
Engine		Model	Cummins6BTAA5.9-C
		Rated power	112kW (150hp) /1950 rpm
		Max. torque	614 N.m/1500 rpm
		Bore× Stroke	102mm×120mm
		Displacement	5.9 L
		Comment	Maintain the rated power at 2300m elevation.
Operating weight		Summary	Operating weight:21800kg The operating weight includes the weight of 5675 mm standard boom,2920 mm standard arm, 1.0m3 standard bucket,600 mm track shoes,lubricating oil, coolant,the full diesel oil tank and the rest standard configuration units.
		Ground pressure	51 kPa
Fluid capacity		Fuel tank	380 L
		Cooling system	23 L
		Engine oil	18 L
		Swing drive unit	3.8 L
		Traveling gear	2×3.3 L
		Hydraulic oil tank	280 L
Swing mechanism			High torque plunger motor and 2-stage planetary reducer drive. Brake inside loading motor is applied by spring and released by hydraulic unit. The automatic braking is available when the swing control lever is in neutral position.
			Swing speed :11.6 rpm
Travel drive	Summary		The integrated 2-speed plunger hydraulic motor and reducer drive, motor and hydraulic pipeline are arranged inside the track frame to prevent the damage caused by the rugged road surface, The motor inside is provided with the service brake and shock absorption valve to ensure the smooth running and stop and the reliable braking.
	Taveling speed		3.0 -5.2 km/h
	Gradeability		35°(70%)
	MaximumTraction		222 kN
Traveling mechanism	Standard track shoe width		600 mm
	No. of track shoe		47 (each side)
	No. of carrierrollers		2 (each side)
	No. of track rollers		8 (each side)
Hydraulic system	Main pump		Duplex axial variable plunger pump
	Pilot pump		gear pump (integrated in main pump)
	Max. flow of system		2×208 L/min
	Max. pressure of equipment		34.3 MPa
	Max. pilot pressure		3.9 MPa
Operating equipment			Each machine action is under the pilot control. The right lever controls the motion of boom and bucket while the left lever controls the arm motion and upper structure swing. The foot pilot valve is provided with the lever joystick to control the machine traveling or turning by the foot or lever. The traveling gear shift adopts the solenoid switch control.
Electrical system			System voltage:24 V Battery:12 V,120 A×2

Our Services

- After-sales Service

- In-house training and Workshop

- Technical Support

- International Logistics Service

- Special Promotions

- Purchasing Solutions

- Maintenance Program

- Consultation Program

Packaging & Shipping

CHEAP MINI EXCAVATOR will be transported by Ro-Ro , Bulk ,Container,Contrainer frame.
