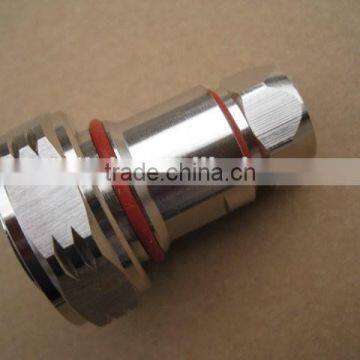

DIN 7/16 Male Type Clamp Connector for 3/8 Super Flexible Cable
US$ 0.49 - 0.99
/ Piece
500 Pieces(Min. Order)
- FOB shenzhen
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Twinlink | |
| Model Number | 3/8" |
Product Description
DIN 7/16 Male Type Clamp Connector for 3/8 Super Flexible Cable
The joining device of 7/16(L29) type has whorl to join the organization, its characteristic is the power, the capacity is large, Voltage little to stay Bob, three steps it pays to be superior to transfer performance , kind airtight have, Suitable for radio, TV aerial system, jump line join and microwave communication system present cable connection spend mainly.
| Mechanical Characteristics | |
| Characteristic Impedance: | 50Ω |
| Frequency Range: | 0-7.5GHz |
| Withstand Voltage: | 4000V,50Hz |
| Working Voltage: | 2500V,50Hz (see level) |
| Insulation Resistance: | ≥100000mΩ |
| Contact Resistance | Inner conductor: ≤1.0mΩ |
| Outer conductor: ≤0.5mΩ | |
| RF leakage(1GHZ): | Flexible: ≥128dB |
| 3rd order intermodulation | ≥160dBc |
| Material | |
| Pin conductor: | Brass--Au plated |
| Shell: | Brass--CuSnZn3 plated |
| Socket: | Phosphor bronze / Beryllium copper--Ag plated |
| Crimping suite: | Copper--CuSnZn3 plated |
| Insulator: | PTFE / PFA |
| Sealing | Silastic |
| Applicable Standard |
| CECC 22190 IEC 60169-4 DIN 47223 |
Reference Picture
Tinlink will try our best to insure the packing and transportation process, to make sure our customers received the perfect cargo.
We have different packing method to meet our customers requirement.
| Normal Packing |
| Packing Details: Foam + Carton Blister + Carton Vacuumize + Blister + Carton Vacuumize + Foam + Carton |
Vacuumize
Vacuumize + Carton
Foam
Blister
