SMB to U.FL IPEX Cable Assembly Pigtail Cable
USD $0.1 - $0.3
/ Piece
1000 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- Shenzhen
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Twinlink | |
| Number of Conductors | 1 |
Product Description

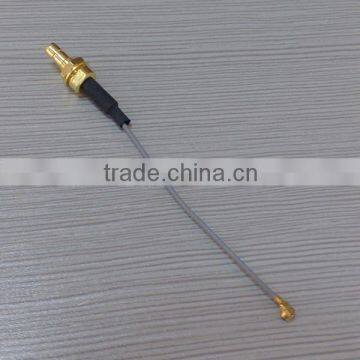

SMB to UFL IPEX Cable Assembly Pigtail Cable
IPEX MHF connector:
| Mechanical Characteristics | |
| ELECTRICAL DATA | |
| Impedance | 50Ω |
| Frequency range | DC-6Ghz |
| VSWR | 1.3 max |
| ENVIRONMENTAL DATA | |
| Temperature range | -40°C to +90°C |
| MATERIAL DATA | |
| Bodies | Brass--gold plating |
| Pin contacts | Brass--gold plating |
| Socket contacts | Copper-beryllium alloy--Au plating |
| Insulator | PTFE |
| Connector brand | IPEX/HRS |
| Cable type | 1.78mm,1.37mm,1.32mm,1.13mm,0.81mm etc |
| Application | smartphone,tablet PC,wifi antenna,GPS antenna, etc |
SMA connector:
| Mechanical Characteristics | |
| ELECTRICAL DATA | |
| Impedance | 50Ω |
| Frequency range (for connector interface) | DC~18GHz |
| VSWR | 1.25 max |
| Dielectric withstanding voltage (at sea level) | ≥750-1500V,50Hz (depending on cable) |
| Working voltage (at sea level) | ≥250-500V,50Hz (sea level) / ≥65-125V,50Hz (Height 21000M) |
| Insulation resistance | ≥ 5000 mΩ |
| Contact resistance | Inner conductor: ≤3mΩ |
| Outer conductor: ≤2.5mΩ | |
| RF leakage(2-3GHZ) | Flexible: ≥60dB |
| Semi-rigid cable: ≥100dB | |
| MECHANICAL DATA | |
| Coupling nut torque | 0.8Nm--1.1Nm / 7.1 in.lbs--9.7 in.lbs |
| Coupling nut retention force | ≥270N / 60.7 lbs |
| Contact captivation axial | ≥27N / 6.1 lbs |
| Durability (matings) | ≤500 |
| ENVIRONMENTAL DATA | |
| Temperature range | -65°C to +165°C |
| MATERIAL DATA | |
| Bodies, outer contacts | Stainless steel--Passivation |
| Pin contacts | Brass/Beryllium copper--Au plating |
| Socket contacts | Beryllium copper / Phosphor bronze--Au plating |
| Crimp ferrules | Brass--Au plating |
| Insulator | PTFE |
| Gaskets | Silicone rubber |
Cable type:
RG178,RG174,1.37mm,1.32mm,1.13mm,0.81mm etc
| Twinlink's Advantages | |
| 1.Established in 2007 | |
| 2.Reliable performance | |
| 3.OEM/ODM service available | |
| 4.Perfect production management system(ISO9001,ISO14001) | |
| 5. Experienced R&D staff | |
| 6.Samples trial order available | |
| 7.All Goods will be tested before shipping | |
| 8.International series:4.1/9.5,MMCX,MCX,SMA,SMB,SMC,N,7/16,F,BNC,UHF,SHV, QMA,BMA,TNC series etc available for you. | |
| 9.Main cooperated clients:Andrew(USA),KMW(Korea),Galtronics Group (Israel),TATFOOK(China mainland),Laird(Malaysia) etc. | |
| How to order RF coaxial connectors | |
| Twinlink is a professional and experienced RF connector products manufacturer since 2007. Just show me your drawing ,sample or indicated details, we will produce it for you effectively. Or pls kindly send us your specific engineering parameters such as PIM,V.S.W.R,plating,etc.And we will discuss with you about the details. | |
| Certifications approved | |
| RoHS,SGS,ISO9001:2008,ISO14001 | |
| Quality Control | |
| Twinlink is also highly regarded as a quality manufacturer, with precision testing and inspection equipment. Twinlink has already achieved ISO 9001:2008 and ISO14001: 2004 cetification, and all of our products comply with RoHS requirements. | |
| Minimum Testing Standard | |
| 1. Waterproof Testing: IP68 grade, drop into 1 metre deep water, and take it out after 24 hours later, there is no water seepage indication arriving. 2. Salt Mist Testing 5% concentration salt mist testing standard Au plated, minimum 96 hours Ag plated, minimum 72 hours CuSnZn3 plated, minimum 336 hours 3. Aging testing aging temperature minimum 85 degree, take it out after 24 hours later, the mechanical characteristics in the standard range | |
| Normal Packing Selective | |
| 1.poly bag + Carton 2.Tray + Carton 3.Vacuumize + poly bag + Carton 4.Customized | |
