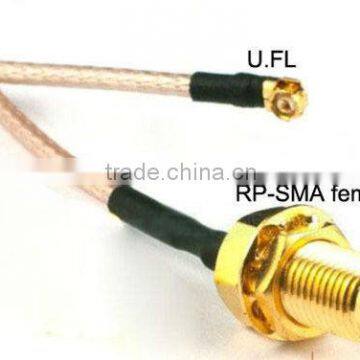

RF Jumper RG178 antenna cable Ipex to SMA connector

FOB Price

US$ 0.1 - 0.3 / Piece

1000 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Twinlink
Number of Conductors	1

RF Jumper RG178 antenna cable Ipex to SMA connector
ISO9001,ISO14001,Rohs
Andrew,Emerson vendor
OEM,ODM

RF Jumper RG178 antenna cable Ipex to SMA connector

IPEX MHF connector:

Mechanical Characteristics
ELECTRICAL DATA
Impedance	50Ω
Frequency range	DC-6Ghz
VSWR	1.3 max
ENVIRONMENTAL DATA
Temperature range	-40°C to +90°C
MATERIAL DATA
Bodies	Brass--gold plating
Pin contacts	Brass--gold plating
Socket contacts	Copper-beryllium alloy--Au plating
Insulator	PTFE
Connector brand	IPEX/HRS
Cable type	1.78mm,1.37mm,1.32mm,1.13mm,0.81mm etc
Application	smartphone,tablet PC,wifi antenna,GPS antenna, etc

SMA connector:

Mechanical Characteristics
ELECTRICAL DATA
Impedance	50Ω
Frequency range (for connector interface)	DC~18GHz
VSWR	1.25 max
Dielectric withstanding voltage (at sea level)	≥750-1500V,50Hz (depending on cable)
Working voltage (at sea level)	≥250-500V,50Hz (sea level) / ≥65-125V,50Hz (Height 21000M)
Insulation resistance	≥ 5000 mΩ
Contact resistance	Inner conductor: ≤3mΩ
Contact resistance	Outer conductor: ≤2.5mΩ
RF leakage(2-3GHZ)	Flexible: ≥60dB
RF leakage(2-3GHZ)	Semi-rigid cable: ≥100dB

MECHANICAL DATA
Coupling nut torque	0.8Nm--1.1Nm / 7.1 in.lbs--9.7 in.lbs
Coupling nut retention force	≥270N / 60.7 lbs
Contact captivation axial	≥27N / 6.1 lbs
Durability (matings)	≤500

ENVIRONMENTAL DATA
Temperature range	-65°C to +165°C

MATERIAL DATA
Bodies, outer contacts	Stainless steel--Passivation
Pin contacts	Brass/Beryllium copper--Au plating
Socket contacts	Beryllium copper / Phosphor bronze--Au plating
Crimp ferrules	Brass--Au plating
Insulator	PTFE
Gaskets	Silicone rubber

Cable type:

RG178,RG174,1.37mm,1.32mm,1.13mm,0.81mm etc
