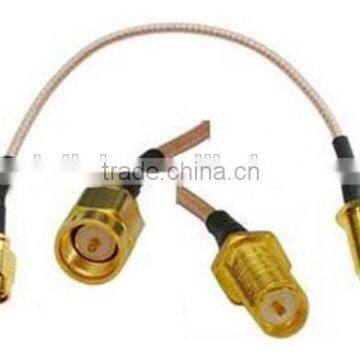

SMA Male to Female with RG316 Cable Assembly / Jumper

FOB Price

USD $1.49 - $2.49 / Piece

500 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	TWL
Model Number	Feeder Clamp

SMA Male to Female with RG316 Cable Assembly / Jumper

Specification:

Type name	N Male To N Male Feeder Cable Assembly 1/2" Corrugated Cable
Impedance	50Ω
Vibration	100m/S2 (10~500Hz)
Frequency Range	DC-7.5GHz
Insertion Loss	≤ 0.15dB/6GHz
Withstanding Voltage	4000V r.m.s at sea level
Working Voltage	2700Vr.m.s at sea level
Average power	3Kw max
Insulation Resistance	≥ 10000 MΩ
Center conductor retention force	≥ 6N
Durability	≥ 500(cycles)
Contact resistance:	CenterContact ≤ 0.4mΩ
	Outer Contact ≤ 1.5mΩ
Voltage Standing Wave Ratio:	Straight	≤ 1.20/6GHz
	Right angle	≤ 1.35/6GHz

Picture show:

RF coaxial cable assembly (7/16 DIN/N/TNC/BNC/FME/U.FL/IPEX/L9/SMA/SMB/MMCX/MCX/OEM)

We focus on coaxial assemblies
Our custom RF cable assemblies are built-in and shipped worldwide
RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB
RF cable assemblies includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/U
RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications
If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department
Connector on first ... connector Depends on your needs
Connector on second ...connector
Cable type ...
Cable length .. cm
Packing Neutral packing or customized
