Nylon Cable Gland & Cable Connector for devices
- NINGBO or SHANGHAI
- D/P D/A Credit Card
You May Like
Product Details
| Brand Name | HIKINGBIX | Model Number | HCB001, PG-13.5 PG-19 PG-25 ,PG 7,PG9 | |
| Type | Cat 1 |
Product Description
Specifications
Nylon Cable Gland & Cable Connector for devicesROSH CE Certificate
IP68 Protection Grade
Full Thread(PG,Metric,NPT,G)
In
PRODUCT NAME : Nylon Cable Gland & Cable Connector for devices
Photos HIKINGBOX

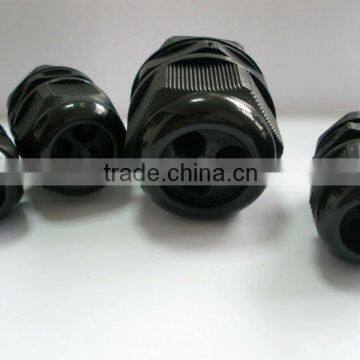

Plastic Cable Gland:
Metal Cable Gland:
Specifications HIKINGBOX
1) Waterproof IP68 degree, CE,RoHs ATEX approvals
2) Brass with nickel plated for lock nut, body,sealing nut parts, NBR rubber
Extremely easy installation,simply insert cable through the assembled gland and tighten gland locknut until cable is secured.
These cable glands are designed to withstand water,dust,salt,acid-base,alchol,oil and common solvent
Feature HIKINGBOX
Waterproof Nylon Connector PG Cable Gland
(1)=Material:made from UL Nylon 66, 94V-2 and tight ring from rubber.
(2)=Feature:
- Special designation, good strengthsile and none damage to electrical machine.
- not need to dismetgrate the fix terminal, cable can be inserted throug directly then tighten easy and save time.
(3)=Application:used for machinery control box, distribution plate, machine and electrical, etc.
<img src="/img/pb/789/988/015/1015988789_988.jpg" alt="Nylon Cable Gland & Cable Connector" ori-width="649" ori-height="245">
| Part No.: | D1 | D2 | L1 | L2 | L3 | L4 | B1 | Cable Range |
| PG-07 | 12.1 | 8.7 | 8.3 | 5 | 15 | 13.8 | 6.9 | 3.5-6 |
| PG-09 | 16.2 | 11.1 | 8.7 | 4.6 | 16.1 | 15.7 | 8.9 | 4-8 |
| PG-11 | 18.2 | 13.4 | 8.7 | 5.1 | 18.1 | 17.9 | 11.3 | 5-10 |
| PG-13.5 | 20.1 | 15.5 | 8.7 | 5 | 19.2 | 18.3 | 12.8 | 6-12 |
| PG-16 | 22.3 | 17.6 | 11.3 | 5.2 | 20.2 | 18.1 | 13.7 | 10-14 |
| PG-19 | 24.1 | 19.1 | 11.1 | 5.1 | 21.1 | 20.5 | 15.8 | 12-15 |
| PG-21 | 26.7 | 21.4 | 11.1 | 5.1 | 23 | 22 | 17.4 | 13-18 |
| PG-24 | 30.1 | 24.8 | 12.8 | 5.8 | 23.9 | 23.7 | 23.1 | 15.22 |
| PG-29 | 35.9 | 28.8 | 11.9 | 6.9 | 24.4 | 23.5 | 25.3 | 18-25 |
| PG-36 | 46.4 | 39.1 | 16 | 7.8 | 30.7 | 27.3 | 31.9 | 22-32 |
| PG-42 | 53.9 | 46.7 | 15.4 | 7.9 | 33.2 | 28.5 | 37.1 | 30-38 |
| PG-48 | 60.2 | 52.6 | 18 | 7.9 | 35.5 | 30.3 | 45.1 | 34-44 |
| PG-63 | 70.6 | 63.9 | 28.9 | 8.9 | 41.4 | 41.3 | 49.3 | 42-54 |
Shipping Terms HIKINGBOX
Express : 3-7 WORKING DAYS
Air Way : 7-10 WORKING DAYS
Sea Freight : According Real Situation.
