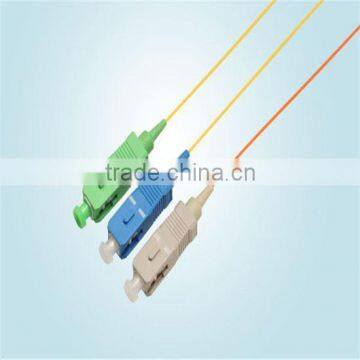

Best Quality Sc Apc 8 Core Fiber Optic Pigtail
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Factory Supplying Cheap Fiber Optic Cable Assembles
-
Factory Supplying Cheap Fiber Optic 12 Core Pigtail SC,FC,LC,ST,MU,MTP,MPO,MTRJ,E2000 Connector
-
Hot Selling Low Price Sc Upc Optic Fiber Pigtail Cord
-
High Quality Best Price 12 Core Fiber Optical Pigtail
-
High Quality Best Price Sc 12 Core Optical Fiber Pigtail
-
High Quality Best Price Fiber Optical
Product Details
| Place of Origin | Guangdong, China | Brand Name | POWERLINK | |
| Model Number | PL-FOP |
Product Description
hot selling low price SC LC ST FC pigtails Sc apc 8 core fiber Optic Pigtail
Fiber pigtail cables provide a fast way to make factory terminations in the field. Factory terminated pigtails can easily be fusion or mechanically spliced to an existing fiber line.
powerlink.COM provide wide degree flexibility on fiber pigtails, including single-mode, multimode and 10G 50/125um OM3 types, simplex fiber, 4 fibers, 6 fibers, 8 fibers, 12 fibers, 24 fibers, 48 fibers and so on. These fiber pigtails can be with fan-out kits and full compliant to Telcordia, EIA/TIA and IEC standards.
Key Features
- Low insertion loss and back reflection loss
- Good exchangeability
- Good Durability
- High temperature stability
- Compliant to IEC, TIA/EIA, NTT and JIS specifications
Specifications
| Specification | Unit | FC, SC, LC/Armored Cables | ST, MU | MT-RJ, MPO | E2000 | ||||||||
| Single-mode | Multi-mode | Single-mode | Multi-mode | Single-mode | Multi-mode | Single-mode | |||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | ||
| Insertion loss | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Wavelength | nm | 850,1310 | 850,1310 | 850,1310 | 850,1310 | ||||||||
| Interchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
| Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
| Cable diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | ||||||||
- These SINGLEMODE 9/125 simplex fiber pigtails have an ST or SC, FC, LC connector on one end. They are commonly used for splicing on to outside plant or riser rated fiber optic cables.
- Custom Information
powerlink offers custom-made pigtails with a wide variety of options:
a. “Unjacketed” fiber pigtails usually installed inside ODF unit.
b. Multi-Strand fiber pigtails without a jacket are ideal for fusion splicing.
c. Multi-Strand fiber pigtails with fan-out are designed for patch panels or cable ducts where space-saving is required.
d. 2, 4, 6, 8, 12, 24 and 48 Strand fiber counts available.
Note :All pigtails can be customized in any fiber type, length, connectors and fiber counts for your requirement.
Applications
- CATV;
- Active device termination;
- Telecommunication networks;
- Metro;
- Local Area Networks;
- Data processing networks;
- Test equipment;
- Premise installation;
- Wide Area Networks
| connoctor type | SC, ST, FC, LC, MU, MTRJ, E2000 ,MPO/MTP,SMA.... |
| Cables | PVC/LSZH ,OM1,OM2,OM3,OM4, Plenum(OFNP) , Armored |
| Color | yellow,gray,sky bule ,orange,white,black... |
- Packaging : bags&caron box
- Shipping: International Express: Fedex, DHL, UPS, TNT and EMS.If you have another
- preferred carrier, please notify us in advance.
- FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
- DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
- "One to one" heart to heart service:Sales representative serve for five clients only. We look forward the continuing long-term services for you, but not just one or two times' co-operation.
- Perfect after-sales service :24-hour designated telephone number, e-mail and customer manager
Shenzhen powerlink electronic technology company limited is a high-tech private-run enterprise specialized in research development ,manufacturing customized video and fiber optical media converter products and power supply products . mainly manufacture Optical Fiber Transmission, Data Communication and Network Access Equipments. Included LD/PD, Optical Fiber Communication ,fiber media converter, digital video converters, media converters,Digital CCD cameral ,ethernet switch, video converter, fiber optic modem, protocol converter, fiber optic adapter, fiber optic cable, patch cord, optical coupler, wavelength division multiplexer, optical attenuator, fiber optic splice enclosure, fiber optic terminating box ,LED power supply ,switch power supply etc, which have been are widely applied in many industries like telecom, broadcast&television, finance,traffic safety protection, computer, campus network, interliligent district and electronic government affairs engineering etc. those products are used widely in more than 30 industries , such as Telecom ,safe city Surveillance, International Airports, Highway, Power, Hydropower, Public Security.
Why POWERLINK
- Higher quality but lower price :Business Process Outsourcing. Outsourcing the repetitive non-core or core production process to professional suppliers, reduce cost; improve service at the same time. Can concentrate on control of the company's core technology, achieve high-end products positioning as well as understand the whole industry chain deeply
- Complete solution, meet individual requirements
- We thoughtfully consider from the initial design to material and supplier selection, from the main parts to one wire or even a screw. Combination local geographical, climatic characteristics, as well as factors such as regional culture in of product design, and fully customized to meet the requirements.
- Resource integration, provide you with the most satisfied products :We have accumulated thousands of solar manufacturers, hundreds of friendly cooperator, we will continue the accumulation.
- Professional technique, quality assurance:Control the quality from the source, professional product engineers and sales engineers make checks at all levels.
- ERP management :All management runs through pre-sale, sales, after- sale strictly in accordance with the ERP.
- Standardization,Atumization,Vitrification,Definite Responsibility,More Optimized Flow
