Product Details
| Place of Origin | Guangdong, China | Brand Name | POWERLINK | |
| Model Number | PL-FOP |
Product Description

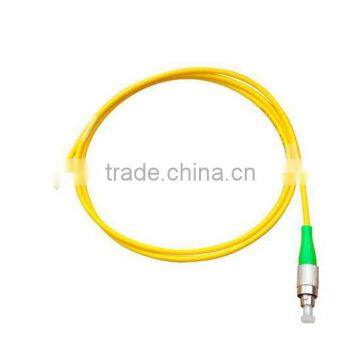

hot selling low price SC LC ST FC pigtails 900um Fiber Optic Pigtail
Fiber pigtail cables provide a fast way to make factory terminations in the field. Factory terminated pigtails can easily be fusion or mechanically spliced to an existing fiber line.
powerlink.COM provide wide degree flexibility on fiber pigtails, including single-mode, multimode and 10G 50/125um OM3 types, simplex fiber, 4 fibers, 6 fibers, 8 fibers, 12 fibers, 24 fibers, 48 fibers and so on. These fiber pigtails can be with fan-out kits and full compliant to Telcordia, EIA/TIA and IEC standards.
Key Features
- Low insertion loss and back reflection loss
- Good exchangeability
- Good Durability
- High temperature stability
- Compliant to IEC, TIA/EIA, NTT and JIS specifications
Specifications
| Specification | Unit | FC, SC, LC/Armored Cables | ST, MU | MT-RJ, MPO | E2000 | ||||||||
| Single-mode | Multi-mode | Single-mode | Multi-mode | Single-mode | Multi-mode | Single-mode | |||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | ||
| Insertion loss | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Wavelength | nm | 850,1310 | 850,1310 | 850,1310 | 850,1310 | ||||||||
| Interchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
| Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
| Cable diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | ||||||||
- These SINGLEMODE 9/125 simplex fiber pigtails have an ST or SC, FC, LC connector on one end. They are commonly used for splicing on to outside plant or riser rated fiber optic cables.
- Custom Information
powerlink offers custom-made pigtails with a wide variety of options:
a. “Unjacketed” fiber pigtails usually installed inside ODF unit.
b. Multi-Strand fiber pigtails without a jacket are ideal for fusion splicing.
c. Multi-Strand fiber pigtails with fan-out are designed for patch panels or cable ducts where space-saving is required.
d. 2, 4, 6, 8, 12, 24 and 48 Strand fiber counts available.
Note :All pigtails can be customized in any fiber type, length, connectors and fiber counts for your requirement.
Applications
- CATV;
- Active device termination;
- Telecommunication networks;
- Metro;
- Local Area Networks;
- Data processing networks;
- Test equipment;
- Premise installation;
- Wide Area Networks
| connoctor type | SC, ST, FC, LC, MU, MTRJ, E2000 ,MPO/MTP,SMA.... |
| Cables | PVC/LSZH ,OM1,OM2,OM3,OM4, Plenum(OFNP) , Armored |
| Color | yellow,gray,sky bule ,orange,white,black... |
- Packaging : bags&caron box
- Shipping: International Express: Fedex, DHL, UPS, TNT and EMS.If you have another
- preferred carrier, please notify us in advance.
- FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
- DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
- "One to one" heart to heart service:Sales representative serve for five clients only. We look forward the continuing long-term services for you, but not just one or two times' co-operation.
- Perfect after-sales service :24-hour designated telephone number, e-mail and customer manager
