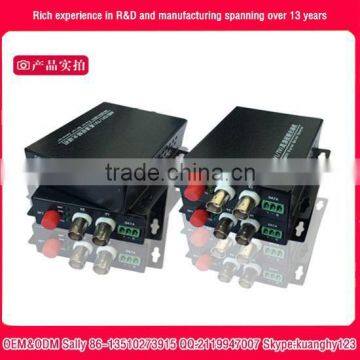

2Ch 720P/960P/1080P CVI/AHD Converter hd-cvi Fiber Optic to BNC Digital Video Converter fiber optical transmitter and receiver
- CHINA
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
1Ch 720P/960P/1080P CVI/AHD Converter hd-cvi Fiber Optic to BNC Digital Video Converter fiber optical transmitter and receiver
-
1ch to 64ch FXO/FXS voice telephone fiber optic multiplexer pcm 64 channel multiplexer voice fiber modem
-
1ch to 64ch FXO/FXS voice telephone fiber optic multiplexer pcm 32 channel multiplexer voice fiber modem
-
1ch to 64ch FXO/FXS voice telephone fiber optic multiplexer pcm 16 channel multiplexer voice fiber modem
-
1ch to 64ch FXO/FXS voice telephone fiber optic multiplexer pcm 8 channel multiplexer voice fiber modem
-
1ch to 64ch FXO/FXS voice telephone fiber optic multiplexer pcm 4 channel multiplexer voice fiber modem
Product Details
Place of Origin | Guangdong, China | Brand Name | POWERLINK | |
Model Number | PL-AHD1V1D-SM-FC-20KM |
Product Description
2Ch 720P/960P/1080P CVI/AHD Converter hd-cvi Fiber Optic to BNC Digital Video Converter 1CH to 64CH cctv fiber video converter fiber optical transmitter and receiver OEM factory
Optical Multiplexer is popularly with telecommunication operator and suitable in business for communication operator, government and kinds of entities. It is one of the most transmission equipment in point-point fiber optic network. Typical optical multiplexers are Video & Data & Audio Multiplexers, PDH Multiplexer. Powerlink optical multiplexers are highly manageable, accompanied by a network management system for configuration, service, performance, security, and fault management that enable cost-effective and efficient transport.
Fiber optic Video+Data+ Audio Multiplexer/Converter-Transmitter+Receiver can transmit and extend a maximum of video up to a few tens of kilometers. The fiber video converters operate as a transmitter/receiver pair for the transmission of NTSC or PAL video signal with bi-directional audio and bi-directional RS422 or RS485 data over fiber cables. We supply 1, 2, 4, 8, 16, 24, 32 channels fiber video converter with return or bidirectional data&bi-directional RS422 or RS485 data. Plug and Play design ensures the ease of installation and operation. Please feel free to contact us for all your video to fiber and other video conversion requirements.
Descriptions
- Model: PL-2V1D-SM-FC-20KM
- Transmitter + Receiver
- Fiber Mode: Single-Mode
- Wavelengths: 1310nm/1550nm
- Optical Power Budget: 12dB
- Maximum Transmission Distance: 20km
- Standalone- (Insert card version also available ,which can be inserted into our 16-slot, 19inch 2U or 4U rack-mountable card cage).
- Standard Single-Mode 20KM- (Multimode also available, which support for distances up to 2.0 km)
Key Features
- Support Point-to-Point or Daisy-Chain connection
- Uncompressed Digital Composite Video over one fiber
- Compatible with all PAL, NTSC,SECAM Video Systems
- Data support RS485(2-wire or 4-wire),RS232,RS422, Contact Closure
- Single-Mode Fiber Support for Distances up to 100 km
- LED Status Provide Rapid Indication of Operating Parameters
- No EMI or RFI and no ground loops
- Support Coarse Wavelength Division Multiplexing (CWDM)
- Stand alone
- Produce according to customer's specifications,providing OEM
Technical Indexes
Fiber | FC, Single Mode Single Fiber |
Transmition Distance | 0-120km |
Wavelength | Transmitter: 1310nm(Tx)/1550nm(Rx) |
Receiver: 1550nm(Tx)/1310nm(Rx) | |
Transmitter Input Level | >500mVp-p |
Receiver Output Level | 1Vp-p |
Self-adaption cable equilibrium |
1080p: 75-5 coaxial cable,300m 960p: 75-5 coaxial cable,500m 720p: 75-5 coaxial cable,500m
|
Transmitter Input Return Loss | >15dB |
Input/Output Impedance | 75Ω |
Video Physical Interface | BNC |
Video Channel | 1-Ch~16-Ch |
Video bandwidth | 50MHz |
Sampling Bandwidth | 10 bit |
RS485 | 1-Ch Backward RS485 (Optional) |
Indicators | OPT, PWR, DATA, VIDEO |
Power | DC 5V2A |
Power Consumption | ≤7W |
Operation Humidity | 10%~90% |
Operation Temperature | -30°C~75°C |
