Home > Products > Single point load cell > Lower Price single shear beam aluminium alloy load cell 10kg
Lower Price single shear beam aluminium alloy load cell 10kg
USD $5 - $10
/ Piece
10 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- FOB SHENZHEN
- Credit Card
You May Like
-
Weighing Scales single Shear beam point load cells 5kg 100KG 500KG
-
The strain gauge pressure sensor for high-precision resistor load cell electronic scale sensor
-
Parallel beam aluminum alloy load cell with capacity 4KG 8KG 20KG
-
lower price design of parallel beam load cell 1kg 10kg 50kg 100kg 200kg
-
Weighing Scales single Shear beam point load cells 20kg 50kg 100kg 150kg 200kg
-
100kg 3kg electronic top scales single shear beam load cell
Product Details
| Place of Origin | Hunan, China | Brand Name | CZS | |
| Model Number | CZS619 | Usage | Position Sensor | |
| Theory | Resistance Sensor | Output | Analog Sensor |
Product Description
Product Description

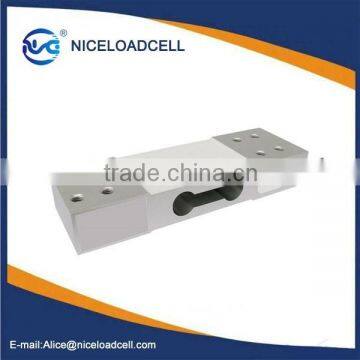

Single Shear beam load cells CZS619
Capacity:10-300kg
Material:Aluminium Alloy
Paltform Size:350x400mm
Electronic top scale, floor scale and other weighing equipment.
.
Rated load (kg): 50、60、75、100、150、200、250、300、500、600、750
Main features: The product is made of alloy aluminum. It is hermetically sealed with glue to IP65, surface anodized and anti-corrosion, integral structure and easy installation. The product is suit for electronic top scale, floor scale and other weighing equipment.
Parameters:
Precision : C2
Temp. effect on span(%F.S/10℃): ±0.02
Comprehensive error(%F.S) : ±0.02
Temp. effect on zero(%F.S/10℃) : ±0.03
Rated output(mv/v) : 2.0±0.1
Compensated temp. range(℃ ) : -10～+40
Creep(%F.S/30min) : ±0.02
Use temp. range(℃ ) : -20～+60
Zero balance(%F.S) : ±1.0
Excitation voltage(V) : 9～12(DC)
Input resistance(Ω) : 405±10
Safe overload (%F.S) : 120
Output resistance(Ω) : 350±3
Ultimate overload (%F.S) : 150
Insulation resistance(MΩ) : ≥5000(100VDC)
Defend grade : IP65
Variety of weighing scals
Related Products
Rlated Products
Material:Alloy Steel stainless steel
Models:CZS803-0.5-10TPrecision:C3
Rated Output:3.0±0.003mv/V
Cable:φ5X3000MM
Defend grade : IP66
