Home > Products > Single point load cell > Parallel Beam and Single Point Load Celll 300KG

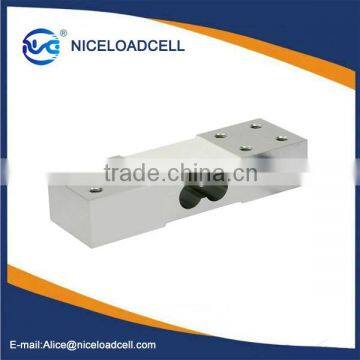

Parallel Beam and Single Point Load Celll 300KG
USD $5 - $10
/ Piece
10 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- FOB SHENZHEN
- Credit Card
You May Like
-
5 10 20 50 75 100 120 200kg parallel beam weighing scales load cells
-
Lower Price single shear beam aluminium alloy load cell 10kg
-
Weighing Scales single Shear beam point load cells 5kg 100KG 500KG
-
The strain gauge pressure sensor for high-precision resistor load cell electronic scale sensor
-
Parallel beam aluminum alloy load cell with capacity 4KG 8KG 20KG
-
lower price design of parallel beam load cell 1kg 10kg 50kg 100kg 200kg
Product Details
| Place of Origin | Hunan, China | Brand Name | CZS | |
| Model Number | CZS619 | Usage | Pressure Sensor | |
| Theory | Resistance Sensor | Output | Digital Sensor |
Product Description
Load Cell
Model:CZS619
Material:Aluminium Alloy
Platform Size:350X400MM
Dimension Size:125X24X40MM
Rated load (kg): 20、30、50、60、100、150、200、250、300
Main features: The product is made of alloy aluminum. It is hermetically sealed with glue to IP65, surface anodized and anti-corrosion, integral structure and easy installation. The product is suit for electronic top scale, floor scale and other weighing equipment.
Parameters:
Precision : C2 Temp. effect on span(%F.S/10℃): ±0.02
Comprehensive error(%F.S) : ±0.02 Temp. effect on zero(%F.S/10℃) : ±0.03
Rated output(mv/v) : 2.0±0.1 Compensated temp. range(℃ ) : -10～+40
Creep(%F.S/30min) : ±0.02 Use temp. range(℃ ) : -20～+60
Zero balance(%F.S) : ±1.0 Excitation voltage(V) : 9～12(DC)
Input resistance(Ω) : 405±10 Safe overload (%F.S) : 120
Output resistance(Ω) : 350±3 Ultimate overload (%F.S) : 150
Insulation resistance(MΩ) : ≥5000(100VDC)
Defend grade : IP65
Related Products
Models:CZS602A
Materil:Aluminum Alloy
Demension SIze:100X22X30MM
Thread Hole:4-M5
Rated Output:2.0 ±0.2
Models:CZS608L
Materil:Aluminum AlloyDemension SIze:84X12X5MM
Rated Output:0.5 ±0.15
Our Company
Certifications
Packing & Delivery
FAQ
Can i get a samples?
Yes,When we are in storage ,will be sending 1-5pcs by free but the shipping cost is by client!
Accept special design?
Yes,we can be accept any special customized
How long for delivery days?
Samples:1-10DAYS
Big Quantity(10K-50K):30-45days
Did you have of gurantee period?
Yes,Within 1year the goods have any problems that you could be return to me revise it but freight cost is by customer
We have a best price and high precision.Welcome to your inquiry!
