PR-600-305 Profile Arch Roof Roll Forming Machine

PRO-240 Q span roll forming machine

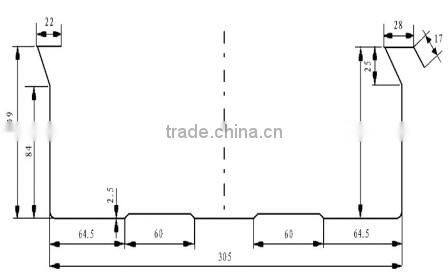

• Profile

• Main parameter

1. Size: 8900mmX2230mmX2300mm (single axle & 4 tires)
2. Total Weight: About 10 Ton
3. Thickness of Bending Leaf: 10mm
4. Cutting blade : 12CrMoV material, Heat treatment
5. Cutting type: Mechanical Cutting Device
6. Forming type: Roll-formed and length-set cutting.
7. Material of rollers: 45# steel, quenched HRC 55~65, hard chrome plating.
8. Material of shafts: 45# steel, galvanized
9. Bearing: made in Harbin
10. Step of molding: 13
11. Rolling material: Feeding width : 600mm  Effective width : 305mm
12. Using rate : 50.8%
13. Thickness : 0.6-1.5mm
14. Controlling System: Hydraulic motor, PLC, touch screen, encoder
15. De-coiler: Coil Inner-diameter: 450mm ~ 650mm,
16. Fixed Coil Max width: 600~620mm
17. Load: 10Ton
18. Generator: Capacity: 30KW/37.5KVA
19. Rated Voltage : 380V

• List of accessories (For Free)

• Name	Amount	Usage
  Manual Un-coiler	1	Roll the sheets;Sheet roll supporter
  Sewing machine	2	Assembling the sheets
  Cradle	16	Plate supporter
  Leg of cradle	15	Supporter Cradle
  Small leg of cradle	38	Adjust the leg of cradle
  Fastening screw for leg	46	Fastening the legs
  Side cradle	8	Plate supporter
  Suspender	3	Lifting
  Pin of suspender	2	Connect the suspender
  Hanger	4	Lifting
  Clamp	4	Bait sheets
  Bearing(208#)	4	To drive the rollers
  Driving chains	3(run)	To roll the gears
  Chain links	3	To link the chain
  Half section	3	To link the chain
  Super pliers	1	Bait sheets
  Metal scissors	1	For cutting
  Wrench	1	For set screw
  Crank handle	1	Adjust height of landing leg
  Travel switch	1(suit)	Measure length of sheet automatically
  VCD	1	Showing how to operate the machine Showing how to do the project



• Professional roof roll forming machine





  Yingkou Professional Roll Forming Machine Co., Ltd.is a professional manufacture of roll forming machine. We can instruct clients to do projects, offer technical support for clients, including project design, drawing supplied and engineer supplied. Clients who purchase our equipments can create largest profit space.



  Our main products are: Steel-drum production line, Steel drum, PRO-240/PRO-120 Arch sheet roll forming machine, Multi-shape Building Machine, Screw-jointed Equipment, KR Series Roll Forming Machine,Glazed Tile Roll Forming Machine, Double Layer Roll Forming Machine, 840 Corrugated Sheet Roll Forming Machine,Corrugated Roof Sheet Forming Machine, Concealed Roof Sheet Forming Machine, Steel Decking Roll Forming Machine,C/Z/U/M Shaped Steel Purlin Forming Machine, Highway Guardrail Roll Forming Machine, Sandwich Panel Roll Forming Machine, Lifting Machine, Unlimited Length Ridge Tile Forming Machine, Sheering Machine, Window and Door Taping Machine, Flat Sheet Bending Machine, Pipe Bender Machine, Bending Machine, Slitting Machine, Slitting Line, SM-40 Spiral Steel Silo Forming Machine, PU Spray and Perfusion Equipment, Colored Steel Sheet Coils, etc.

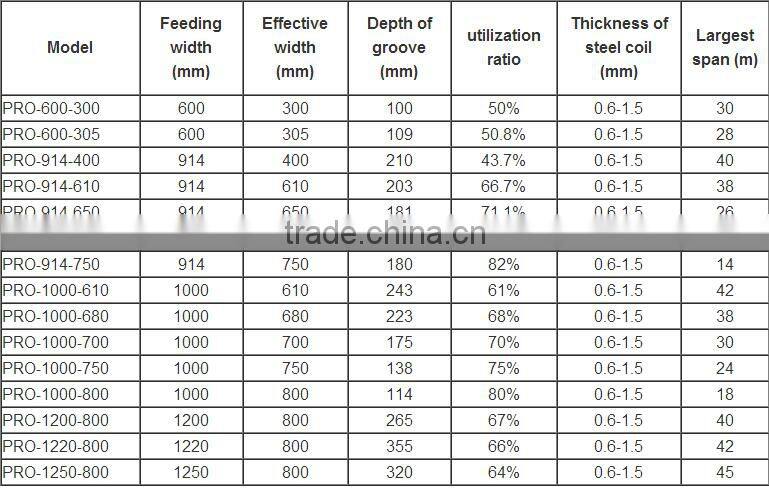

• Model list  of Q span roll forming machine
•
