Screw Joint Suitable Span Type Arch Roof Steel Sheet Roll Forming Machine

Screw Joint Suitable Span  Type Arch Roof Steel Sheet Roll Forming Machine

Panel profile:

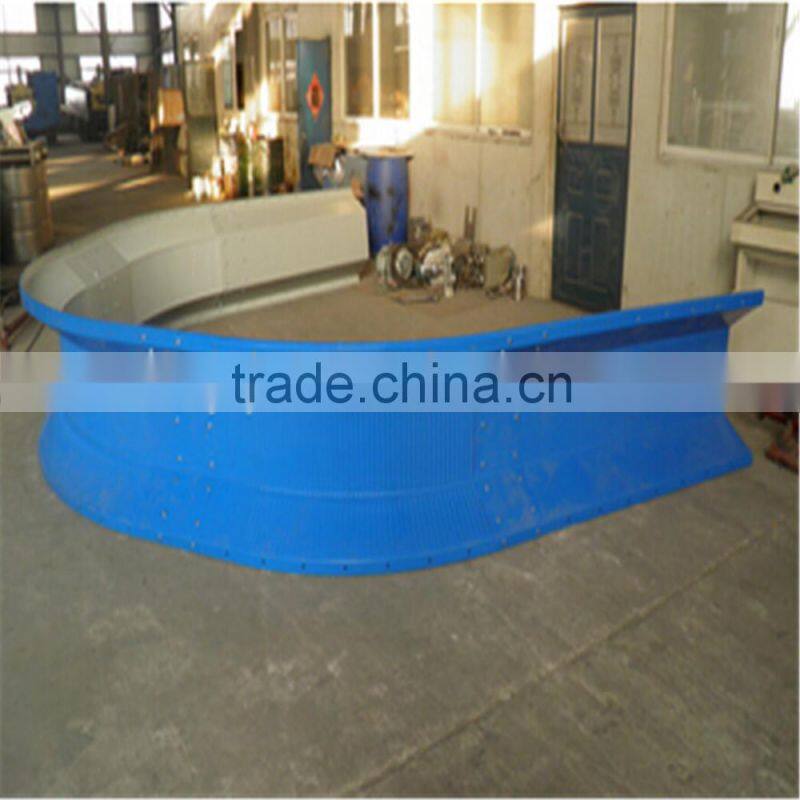

Arch Panel

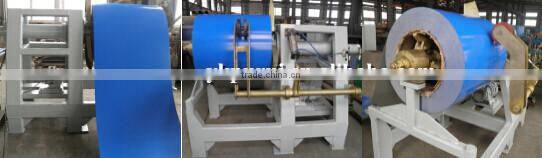

Decoiler:

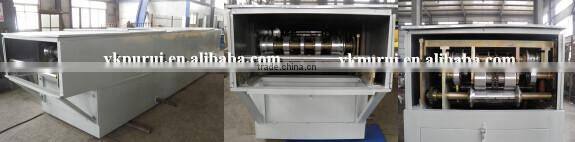

Roll forming rollers

1, Dimension: 6500*1400*1400(mm)  Weight: 6 T

2,    Motor power: 7.5KW

3,    Roller Material: 45# high-quality steel, quenched HRC 55~65,

                   hard chrome plating.

4,    Shaft Material : 65mm, 45# high-quality steel, galvanized

5,    Stands of forming : 10

6,    Feeding width : 1000mm

7,    Effective width: 680mm

8,    Rolling thickness: 0.6-1.5mm

9,    Using rate : 68%

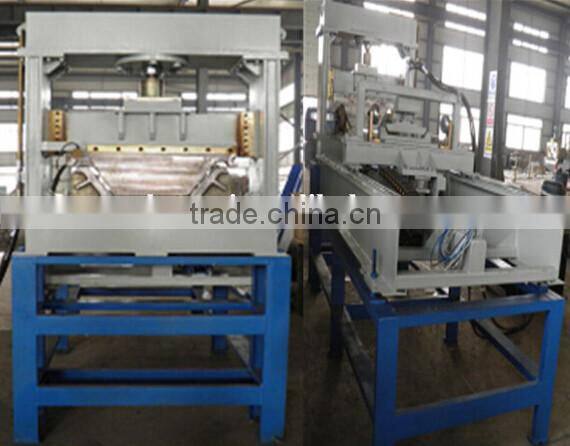

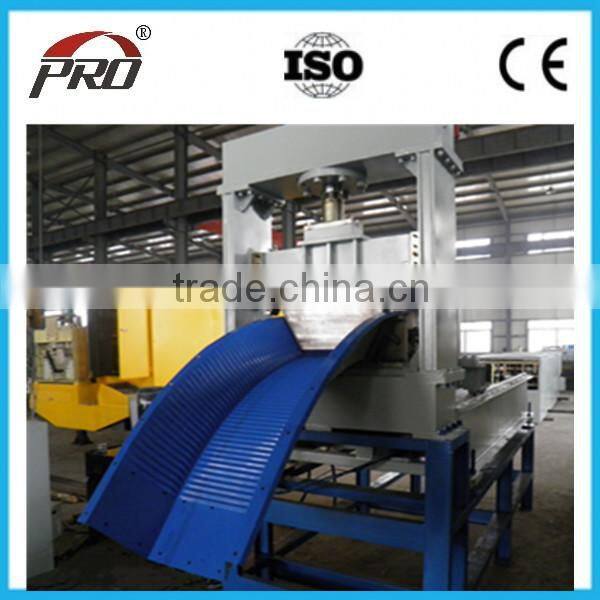

Arching bending parts

1,   Dimension: 3500*1500*2600(mm) Weight: 2 T

2,   Servo motor power: 1.5KW

1, Hydraulic station motor: 11KW

1, Hydraulic oil pump: gear pump, Pressure: <=16Mpa

5,    Mold: 1 set (Pleat pressed)

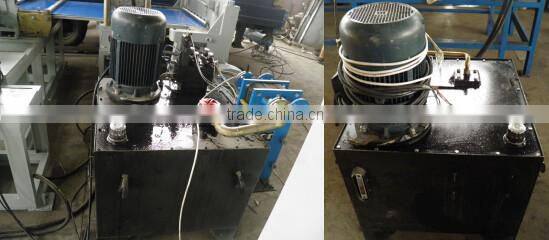

Hydraulic station

Multi-shape:

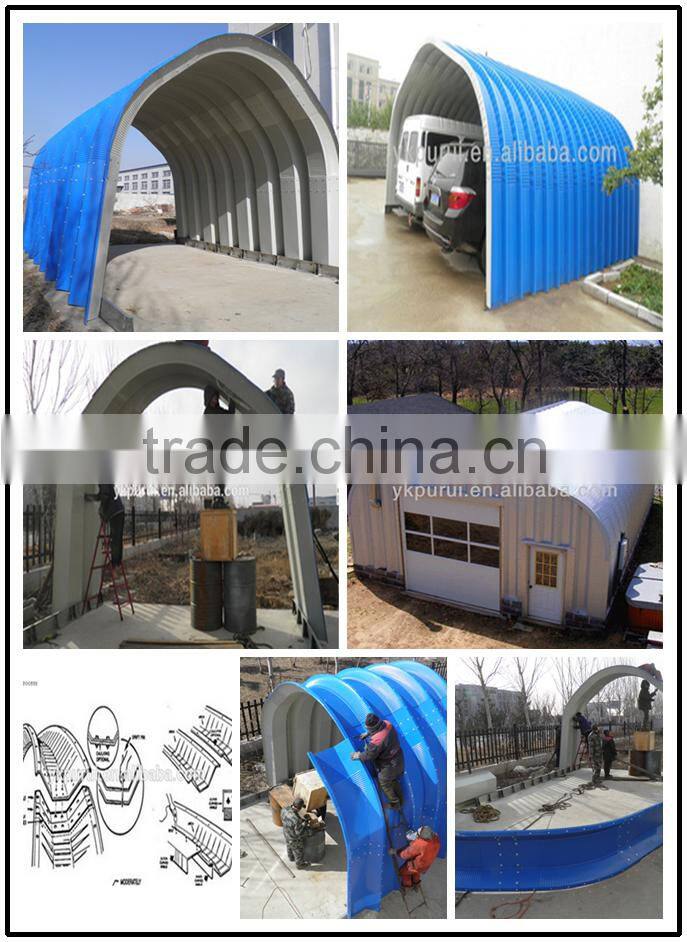

Installation Showing:

Main parameters:

1. Dimension : 10000mm×1500mm×1500mm

2. Weight : Around 8 T

3. Shearing material : 12CrMoV

4. Shearing type : Mechanical

5. Total motor power : 25KW

6. Main motor : 7.5KW

7. Decoiler motor : 3.0KW

8. Leveling machine motor : 4.0KW

9. Shearing machine motor : 3.0KW

10. Hydraulic station power : 7.5KW

11. Roller Material : 45# high-quality steel (Standard), quenched HRC 55~65, hard chrome plating.

12. Shaft Material : 45# high-quality steel, galvanized

Technological process

Loading (load & expand galvanized coil on decoiler)

Feeding & Leveling (prepare flat galvanized sheet for punching)

Edge-punching & Ends-punching on flat galvanized sheet for punching)

Edge-punching & Ends-punching on flat galvanized sheet

shearing punched sheet   Roll forming sheared sheet

Bending Roll formed sheet

Features:

Screw-Joint Arch Building Project
