Home > Products > Water Turbine Generator and Parts > 800KW~8000kw Twin Nozzles Pelton Turbine
800KW~8000kw Twin Nozzles Pelton Turbine
- Chongqing
- T/T
You May Like
Product Details
| Place of Origin | Chongqing, China | Brand Name | Hi-Sea | |
| Model Number | CJ | |||
| Electricity Generator Type | Hydro Power | Output Voltage (V) | 6300 |
Product Description
Specifications
pelton turbine:1.Power:800~8000kw
2.Water Head:150~600m
3.Runner Diameter:1.1m 1.25m
4.Frequency:50Hz 60Hz
pelton turbine:
water turbine
Pelton turbine (also called impulse turbine or action turbine) is the best choice for developing high water head with little flow water power resource. It has good characteristics like less investment, high efficiency, small size and compact structure. Pelton turbine units made by Hi-Sea Marine are suitable for 80~1000m water head with runner diameter 0.6~1.8m and capacity 100~18000kw. Both vertical and horizontal types can be provided, with single nozzle, twin or multi nozzles.
After several years' development, Hi-Sea has a professional sales team which can provide you the best service and meet your every requirement. High quality and competitive price can be promised.
This is technical parameters of 1600kw pelton turbine with twin nozzles and runner diameter 1.1m and 1.25m
Hydraulic Turbine | Turbine Generator | Valve | |||||||
Runner Diameter(m) | Jet Diameter(m) | Design Head(m) | Design Flow(m3/s) | Output(KW) | Speed(r/min) | Power(KW) | Voltage(V) | Efficiency(%) | Model |
1.1 | 0.09 | 250 | 0.80 | 1698 | 600 | 1600 | 6300 | 95 | Φ500 Gate Valve |
| 0.11 | 190 | 1.10 | 1720 | 500 | 1600 | 6300 | 95 | Φ600 Gate Valve |
| 0.125 | 160 | 1.25 | 1700 | 428 | 1600 | 6300 | 95 | Φ700 Gate Valve |
1.25 | 0.09 | 245 | 0.82 | 1730 | 500 | 1600 | 6300 | 95 | Φ500 Gate Valve |
| 0.11 | 190 | 1.12 | 1775 | 428 | 1600 | 6300 | 95 | Φ600 Gate Valve |
| 0.125 | 160 | 1.30 | 1720 | 428 | 1600 | 6300 | 95 | Φ700 Gate Valve |
| 0.14 | 138 | 1.54 | 1758 | 375 | 1600 | 6300 | 94 | Φ800 Gate Valve |

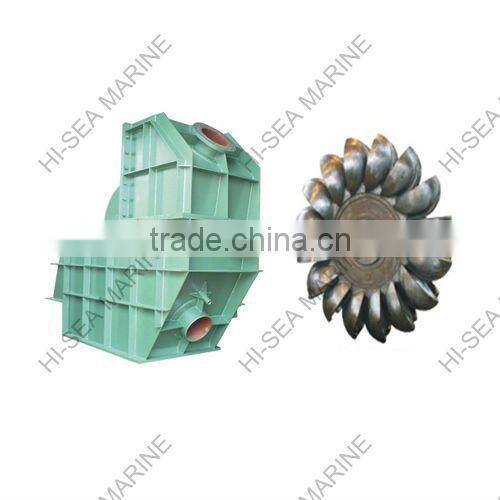

1600kw pelton turbine with twin nozzles
