API Flange Type Bellow Seal Gate Valve

FOB Price

US$ 30 - 1,500 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard or Nonstandard	Standard	Structure	Gate
Pressure	Other, Nominal Pressure	Power	Other, Manual Operation
Material	Other, WCB or CF8	Temperature of Media	Normal Temperature
Media	Other, Inflammable, Explosive, Poisonous media	Port Size	Class150-600
Place of Origin	Chongqing, China	Model Number	N/A
Brand Name	HS

Bellow Seal Gate Valve:
1. Certi.: ISO9001
2. Nominal Diameter: 2-12 Inch
3. Nominal Pressure: 150-600 LB
4. Flange Type

Bellow Seal Gate Valve:

API Flange Type Bellow Seal Gate Valve:

1. Standard:

Design and Manufacture: ASME B16.10 or BS1973

Face to Face Dimension: ANSI B16.10,

Flange Dimension: ANSI B16.5

Inspection and Test: DIN3230, API 598 or MSS SP-117

2. Detailed Information:

Nominal Diameter: 2 inch-12 inch

Nominal Pressure: 150LB-600LB

Temperature: -20C to 350C Degree

Application: Water, Liquid, Gas, Mine(Especially for Inflammable, Explosive, Poisonous media)

3. Material:

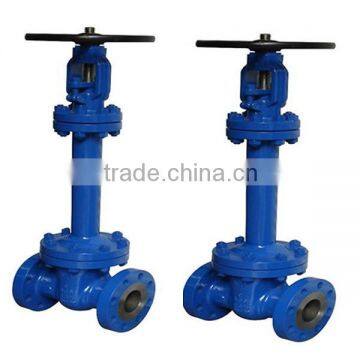

4. API Flange Type Bellow Seal Gate Valve Sample:

5. API Flange Type Bellow Seal Gate Valve Factory:
