Original Noyafa NF-8601W RJ45 LAN Network Cable Tester UTP STP Diagnose Tone Tracer BNC PING/POE RJ11 Telephone Wire Tracker
Negotiable
/ Piece
1 Piece(Min.Order)
- SHENZHEN
- T/T Credit Card PayPal
You May Like
-
Original NOYAFA NF-8601 LAN Network Cable Tester Multifunctional Diagnose Tone Tracer BNC PING/POE RJ45 RJ11 Phone Wire Tracker
-
NF-868 Network LAN Phone Tester wire Tracker Cable Length 1200m USB coaxial RJ45
-
Tenmars TM-903 Multimedia LAN cable Tester TM903 handheld Network cable tester of RJ-45, F-Connector
-
High & Low Voltage Wire Tracker NF-820 Underground Cable Finder Anti-Interference Wire Tracker RJ45 RJ11 BNC Tester
-
Network Toolkit NF-1203 include Wire tracker NF-268 Punch Down Tool RJ45 Plug Crimp
-
AV6471A Optical Fiber Fusion Splicer 8 seconds for splicing USB and VAG Ports
Product Details
| Place of Origin | Guangdong, China | Brand Name | NOYAFA | |
| Model Number | NF-8601W |
Product Description
Original Noyafa NF-8601W RJ45 LAN Network Cable Tester UTP STP Diagnose Tone Tracer BNC PING/POE RJ11 Telephone Wire Tracker
Main Function:
1. Check the PING , POE and cross-talk functions for Network cable.
2. Hunt the target cable from a bundle of cables , such as RJ11 / RJ45 / BNC.
3. Under the situation of connecting Ethernet switches / router to find target cable.
4. Locate the short circuit location for 2 cores cable.
5. Test the RJ11 , RJ45 , BNC cable length under open circuit.
6. Wiremap the short , open , cross , reverse circuit for RJ11 / RJ45 / BNC cables
Application:
1. 3.7V lithium battery power supply ,Convenient, durable, and durable.
2. 2.8 inches LCD Color screen ,Clear, intuitive and personalization.
3. Mian tester can save and export 160 groups of data.
| Technical indexes: | |
| NF-8601W Transmitter specifications | |
| Indictor | LCD 320x240 mm, with backlight |
| Cable test types | STP/UTP 5E,6E network , telephone , coaxial cable |
| Max. distance of wiremap | 2000 m |
| Max. distance of tracing | 2000m |
| Max. distance of cable length | 1000 m |
| Min. distance of calibration | 10 m |
| Accuracy | 3% ( after calibration ) |
| Compatible connectors | RJ11,RJ45 ,BNC, PING/POE |
| Cable map indication | LCD (#1-#8) |
| Battery Type | 3.7V lithium battery 1800mAh |
| Work temperature / humidity | 10℃ ~ -60℃ / 0℃~70℃ |
| Dimension(LxWxD) | 173x92x34mm |
| NF-8601W Receiver specifications | |
| Cable hunting | RJ11,RJ45, BNC |
| Types of cable | ≥ 2 cores |
| Battery Type | 3.7V lithium battery 1800mAh |
| Dimension(LxWxD) | 183x58x35 mm |
| NF-8601W Remote unit specifications | |
| Compatible connectors | RJ11,RJ45, BNC |
| Remote | 8 |
| Dimension(LxWxD) | 106x32x30mm |

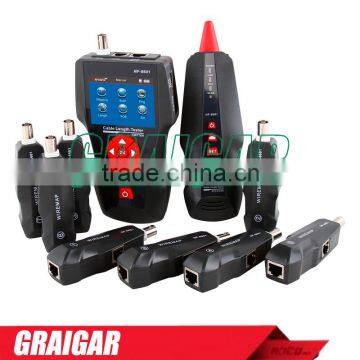

Package List:
1 x Emitter
1 x Receiver
8 x Adapter
1 x RJ11 cable
1 x RJ45 cable
1 x Cable with crocodile clamp
1 x USB Cable
1 x Charger
1 x Earphone
1 x Instruction Manual
1 x Black Pouch
1 x 3.7V lithium battery (Built-IN)
1 x Retail Carton Box
