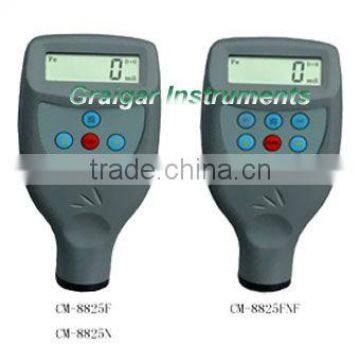

Coating Thickness Meter CM-8825 (F/NF/FN type)
- T/T Credit Card PayPal
You May Like
-
Coating Thickness Meter CM-8828 (F&NF type) auto car coating thickness meter
-
Coating Thickness Meter CM-8829 (F/NF/FN type)
-
digital thickness meter CM10FH
-
digital thickness meter CM10F
-
coating thickness meter tester gauge CM10F
-
TASI-675 Digital Coating Thickness Gauge Painting Width Detectable Substrate Material Ferrous metal as iron, steel
Product Details
| Place of Origin | Guangdong, China | Brand Name | Graigar | |
| Model Number | CM-8825 |
Product Description
Specifications
thickness meter, thickness tester, ultrasonic thickness gauge,coating thickness gauge, coating thickness tester CM-8825Coating Thickness Meter CM-8825 (F/NF/FN type)
Coating thickness meter is widely used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storage tanks,etc.In industries of petroleum,shipbuilding,power station,and machine manufacturing.
Operating principle:
CM-8825F: F type(magnetic induction), measure the thickness of non-magnetic coating layers such as (aluminum,chrome,copper,ename1,rubber,paint) on magnetic substrate (steel, iron, alloy and magnetic steel)
CM-8825N: NF type (eddy current), measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)
CM-8825FN: F type & NF type
Specifications:
In built probes
Measuring range:0-1250um/0-50mil
Resolution: 0.1/1
Accuracy: +/-1-3%n or +/-2.5um
Min. measuring area: 6mm
Min. sample thickness: 0.3mm
Battery indicator: low battery indicator
Metric/ imperial: convertible
Power supply: 4x1.5V AAA(UM-4)battery
Auto power off
Operating conditions: 0-+45°C(32-104), ≤90%RH
Dimensions: 126x65x27mm (5x2.6x1.07 inch)
Weight: 81g / 0.18lb (not including battery)
Optional accessories: other range 0-200um to 15000um
