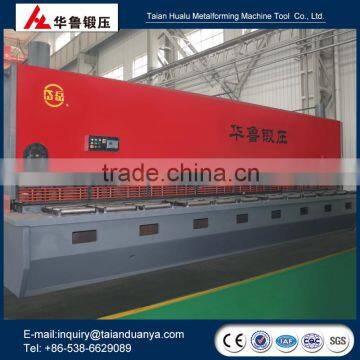

Hydraulic pressure cnc guillotine machine QC11K-16*2500

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Qingdao port china
Payment TermsT/T D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HUALU		Model Number	QC11K-16*2500
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

QC11

Hydraulic pressure cnc guillotine machine QC11K-16*2500

Features of QC11X(K) series hydraulic (CNC) guillotine machine

All welded steel structure has enough strength and rigidity
Series connection of oil cylinders has good synchronous performance,cutting angie can be adjusted and cutting quality is high.
Rolling guide rail not only can ensure stable operation of tool rest,but also can realize quick adjustment of tool blade clearance.
Tool rest travel can be stepless adjustment so as to improve production efficiency.
Back gauge moves quickly and locates accurately.
The CNC is used to control back gauge X-axis,can also control X-axis and several auxiliary functions,CNC system is DAC-360,or DAC-310,E-20.

cutting thickness(mm):4~60 mm
cutting width(mm):2000~16000 mm
Control system: Nanjing ESTUN E10 ;
CNC system: Holand Delem DAC-310,360 system.
Italy Esa S525 CNC system:
Nanjing ESTUN E20 system.

Product specification	16*2500
Maximum cutting plate thickness (mm)	16
Maximum cutting plate width (mm)	2500
Throat depth (mm)	100
Plate tensile strength limit (Mpa)	≤450
Cutting angle degree	0.5-2.5
Travel times (times/min)	9
Maximum back gauge distance (mm)	1000
Power of main motor (Kw)	22
Remark	Technical parameters and equipment configuration can be defined according to users’ needs
