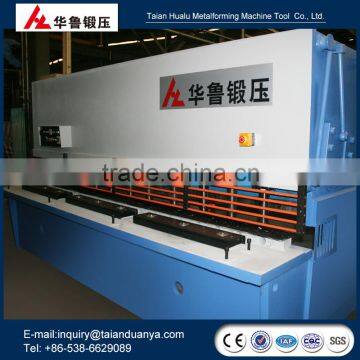

Hydraulic pressure cnc swing type cutting machine QC12K-12*3200

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HUALU		Model Number	QC12K-12*3200
After-sales Service Provided	Engineers available to service machinery overseas

QC12K

Hydraulic pressure cnc swing type cutting machine QC12K-12*3200

Features of QC12X(K) series hydraulic (CNC)swing type plate cutting machine

All welded steel structure has enough strength and rigidity
Tool knife rest makes swing type movement and guide rail system doesn’t need.
Advanced inserting type logic valve integration system is used,which has compact structure and flexible and reable operation.
Knife rest and pressing legs act in order,firstly press and then cut material,pressing force increases witeh cutting force and operation is safe.
Has quick and accurate blade clearance adjustment device.
Motorized back gauge device has quick adjustment,can be fine adjusted manually with digital displaying.
Has light alignment device for the convenience of marking line and cutting.
Has counting and travel adjustment function,has high production effciency.
Has multipie operation functions such as inching and single,and is convenient for adjustment,operation and maintenance.
Equipped with the safety fence.
The CNC is used to controis back gauge X-axis,CNC system is DAC-360,310 or E-20.

Product specification	12*3200
Maximum cutting plate thickness (mm)	12
Maximum cutting plate width (mm)	3200
Throat depth (mm)	300
Plate tensile strength limit (Mpa)	≤450
Cutting angle degree	1.5
Travel times (times/min)	9
Maximum back gauge distance (mm)	1000
Power of main motor (Kw)	22
Remark	Technical parameters and equipment configuration can be defined according to users’ needs
