Home > Products > plate bending machine > Hydraulic cnc Horizontal down type 3-roll plate bending machine WS11K-70*2500
Hydraulic cnc Horizontal down type 3-roll plate bending machine WS11K-70*2500
- Qingdao port china
- T/T D/P D/A Credit Card PayPal
You May Like
-
Hydraulic cnc Horizontal down type 3-roll plate bending machine WS11K-70*3200
-
Hydraulic cnc Horizontal down type 3-roll plate bending machine WS11K-70*3500
-
Hydraulic cnc Horizontal down type 3-roll plate bending machine WS11K-80*2500
-
Hydraulic cnc Horizontal down type 3-roll plate bending machine WS11K-80*3200
-
Hydraulic cnc Horizontal down type 3-roll plate bending machine WS11K-80*4000
-
Hydraulic cnc Horizontal down type 3-roll plate bending machine WS11K-90*3200
Product Details
| Brand Name | HUALU | Model Number | WS11K-70*2500 | |
| Condition | New | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

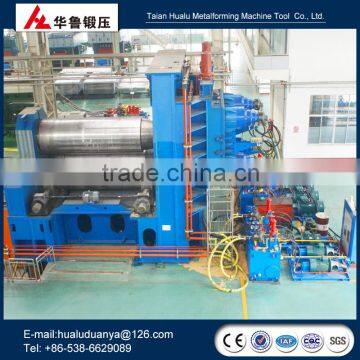

Hydraulic cnc Horizontal down type 3-roll plate bending machine WS11K-70*2500
1.The two bottom rolls are driven by separate power system,eliminating the mechanical interference, vibrationabrasion from the sliding frictions.The bearings of the rolls are self-aligning roll-bearings,with low energy consumptionnoises. The required power from the main motor is small, energysavingenvironmental protecting.
2.The hydraulic cylinder of upender is set beneath the bed, reducing the volume of the whole machine structure. It not only reduces the spacepower ,but also enables the machine to bend the small conesdish plates,expanding its aplications.
3.The structure of the horizontal shift unit is compactconvenient for maintenance.
4.The synchro-lift of both ends of the up roll, the position of the all rollers, the recomended rolling timesscrewdown distance are all automatically controlled via
CNC system with high precision.
5.The CNC system is advance in China.It has the functions of screen displaying,bending calculation,program controlling,parameter ftware protection.default alarmingman-machine conversation,etc.
Product specification | 70*2500 |
Maximum plate width (mm) | 2500 |
Maximum plate thickness (mm) | 70 |
Pre-bending plate thickness | 60 |
Minimum rolling diameter at maximum plate width and thickness (mm) | 2200 |
Yield limit of plate (Mpa) | ≤ 245 |
Plate rolling speed (m/min) | 4.5 |
Power of main motor (Kw) | 33*2 |
Remark | Technical parameters and equipment configuration can be defined according to users’ needs |
