Guy Strain Insulator
US$ 0.55 - 1
/ Piece
10000 Pieces(Min. Order)
- Shenzhen/Ningbo/Shanghai
- T/T Money Gram
You May Like
Product Details
| Place of Origin | Jiangxi, China | Brand Name | TSBXJ | |
| Model Number | ASTM1535 | Type | Insulator | |
| Material | Porcelain | Application | High Voltage | |
| Rated Voltage | kV | Tensile Strength | kN |
Product Description
Main dimension and Technical Requirement
Guy Strain Insulator SIPC-13121
D(Diameter):85mm
H(Height):90mm
Material:glazed porcelain,brown munsell 5 YR 3/3 ASTM1535
Creepage Distance:60mm
Tensile strength:34KN
Flashover voltage,power frequency,1min,dry:25KV
Flashover voltage,power frequency,1min,wet:15KV
Marks:Brand,Month/Year(production date)

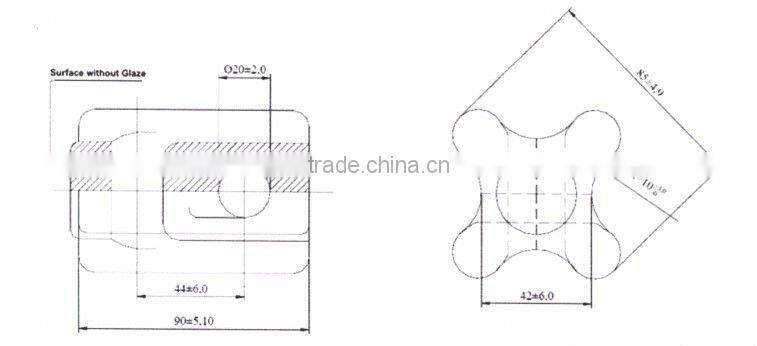

Drawing
