Home > Products > Low voltage porcelain insulator > Low Price 44KN ANSI 54-1 Stay Insulator
Low Price 44KN ANSI 54-1 Stay Insulator
US$ 0.55 - 1
/ Piece
1000 Pieces(Min. Order)
- Shenzhen/Ningbo/Shanghai
- T/T Money Gram
You May Like
Product Details
| Place of Origin | Jiangxi, China | Brand Name | TSBXJ | |
| Model Number | 44KN | Type | Insulator | |
| Material | Porcelain | Application | High Voltage | |
| Rated Voltage | 11kv | Tensile Strength | 44kn |
Product Description

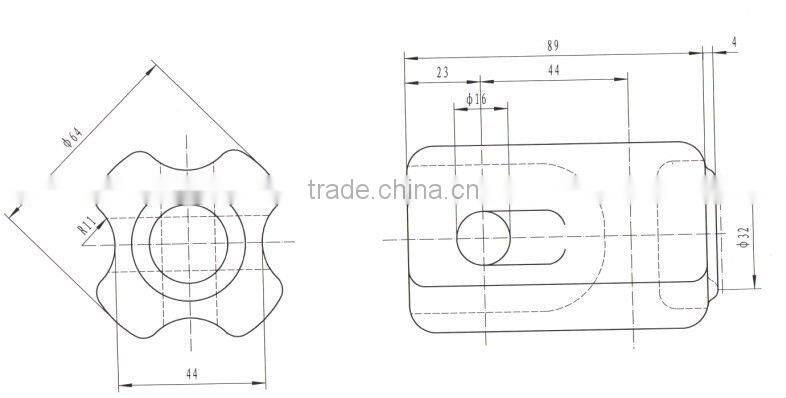

Main dimension and Technical Requirement
44KN ANSI54-1 Stay Insulator
D(Diameter):64mm
H(Height):89mm
Creepage Distance:41mm
Tensile strength:44KN
Flashover voltage,power frequency,1min,dry:25KV
Flashover voltage,power frequency,1min,wet:12KV
Marks:Brand,Month/Year(production date)
