Disc Suspension Porcelain Insulators Applicate to IEC Standard
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangxi, China | Brand Name | TSBXJ, TSBXJ | |
| Model Number | Disc Suspension Insulator | Type | Other, Porcelain | |
| Material | Porcelain | Application | High Voltage | |
| Rated Voltage | 11kV | Tensile Strength | 160kN |
Product Description

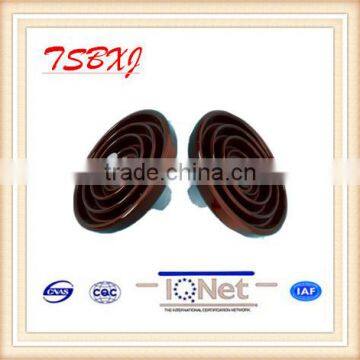

Disc Suspension Porcelain Insulator(U160BL)
Type | XP-160 | |
Class | U160BL | |
Unit spacing (H) mm | 155 | |
Nominal diameter (D) mm | 255 | |
Nominal creepage distance mm | 305 | |
Rated E&M failing load KN | 160 | |
Routine tensile load KN | 80 | |
Coupling size | 20 | |
Impact strength N.m | 10 | |
Power frequency withstand voltage | Wet KV | 40 |
Dry KV | 70 | |
Dry lightning impulse withstand voltage KV | 100 | |
Power frequency puncture voltage KV | 110 | |
Radio interference voltage | Test voltage to groud KV | 10 |
Max.RIV at 1MHZ uv | 50 | |
Mass per 100pcs kg | 690 | |
Applicable standard : GB IEC AS BS | ||
