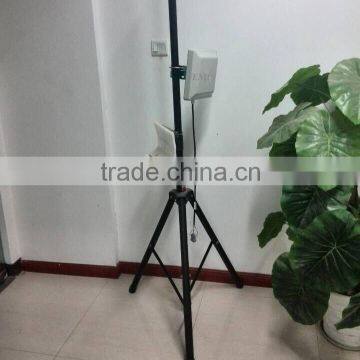

2.4Ghz Long Range Active RFID Reader Module With Battery Replaceable Active Tag JM-1704

2.4Ghz Long Range Active RFID Reader Module with battery Replaceable Active Tag JM-1704

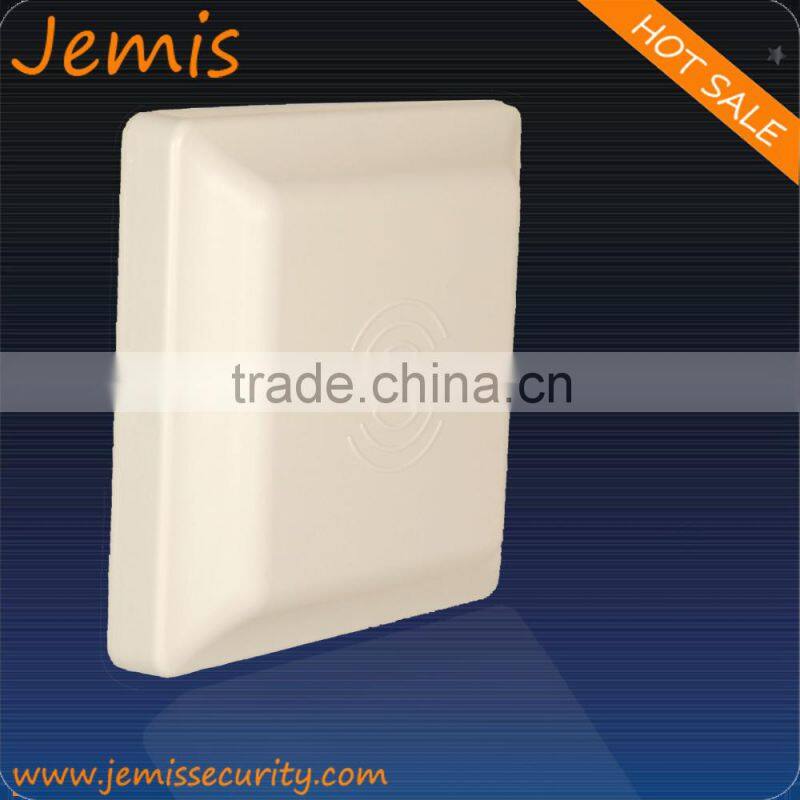

General Description:
It is a High Performance Active 2.4-2.48G directional reader for long range operation with High speed identification, long distance, low power consumption

Features:
     100 pcs tags/s(tag ID number)
        200 pcs tags will be read at same time
        Real-time operation system
        Frequency power can be adjusted by software
        Reading distance 2-100 meter
        2.45GHZ active RFID reader long range

Area of Application:


        Personnel management: quick attendance administration, conference signature system, student safety note system, security patrol system.

        Cargo management: storage and data collection, system, moving goods control and trace, container automatic identification.

        Prevention management: personnel positioning, tracing and goods anti-fake and test.

        Public management: city traffic intelligent platform, vehicle control and operation, train automatic numbering

       Transportation management: road, railway management, and container transfer control tracking management.

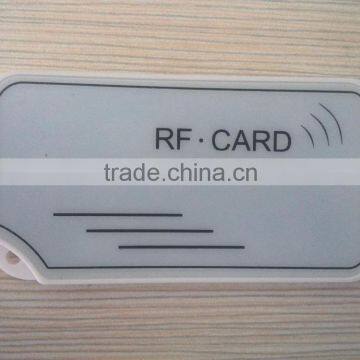

Battery Chang-enable Tag JM-1832

Specifications

1.active tag for 2.4G Reader
2.frequency:2.4GHz-2.5GHz
3.reader distance:5-100m meters
4.Reading way: read-only way

It is source from RFID electric label component

FRID electric label circuit board,install on the inner housing, has waterproof feature

ABS plastic housing, joint by the ultrasonic

Battery: use one CR2032 batteries,lifespan is 6 months in theory

Applications: access control, time attendance, hotel management, transportation, library and campus

Technical Data

1. Working frequency: 2.4GHz-2.5GHz

2. Working way:2.45G active mode

3. Emitting power:<1mW

4. Reading way: read-only way

5. Reading distance:5-100 meters

6. Battery changing: support battery changing

7. Working lifespan in theory : more than half a year

8. Static working current: <3uA

9. Maximum working current:<15mA

10.Communication rate:two way 2048Kbit/s

11. Working voltage:3V (CR2302 button battery)

12. Bumping capability: have strong anti bumping capability, can read card synchronous more than 200 pieces for one second

13. Dimension : 75mm×40mm×5.5mm

14. Working temperature:-20°C -75°C

15. direction for use

User attention

1. Please let the products be insolated in the sun,it will increase the battery's consumption, shorter its lifespan

2. Do not fall the device, because its housing is made of ABS plastic

3. Do not put the device on fire, otherwise the battery will explore

How to change the battery

1.please open the battery cover in the back softly with the toothpick

2. Please press the battery with the toothpick until the battery pop up

3. Changing battery that is batteries are needed to be changed

4.When changing battery, please make clear the the positive and negative charges ( the negative charge face down

5. Cover the battery cover well
