DC inverter arc manual welding machine
- Ningbo/Shanghai and so on
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | SONSCN | Model Number | ARC200 | |
| Arc Current | 10-200A | Pulse Frequency | 58HZ | |
| Pilot Arc Current | 16A | Rated Duty Cycle | 60@160A 35@200A | |
| Motor Type | DC Motor | Dimensions | 31x13x21cm | |
| Usage | Metal welder | Voltage | 220v | |
| Power(W) | 6.4kw | Certification | CE | |
| Warranty | 12months | After-sales Service Provided | Overseas service center available |
Product Description

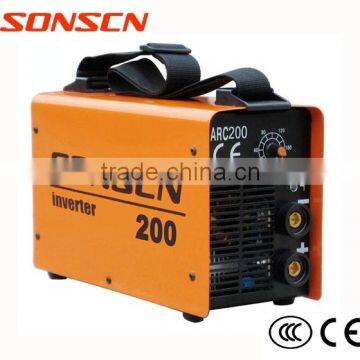

DC inverter arc manual welding machine(ARC 200)
Specification:
| Model | ARC200 | Input voltage | 50/60hz |
| 230V±10%(1 phase) | |||
| Rated input current | Max.29A | No-load voltage | 80V |
| Efficiency | 85% | Input power | Max.6.4kw |
| Current range | 10-200A | Duty cycle | 35%@200A |
| 60%@160A | |||
| Welding rod | 1.5-4mm | Protection class | IP21 |
| Weight | 4.9kg | Dimensions | 31x13x21cm |
| Trademark | SONSCN/ OEM | Standard | CE |
Product pictures
inverter welding machine has following features:
An industrial grade ultra powerful lightweight 200amp Arc/Stick/MMA welding machine with CE approval. Protection forover voltage, over current. This welder adopts advanced circuitry ensuring consistent performance and reliability day in and day out.Safe and reliable.
This arc welding machine/MMA welding machine/welder uses advanced inverter technology (IGBT Inverters) which allows for an ultra powerful welder that is lightweight (4.5kg).
Handle on top allows you to carry the unit for those off site jobs requiring portability.
The circuitry of the inverter welding machine reduces energy costs up to 50% compared to traditional welders while beinghighly effective. Safe and reliable.
The welders robustness makes it usable for your average weekend hobbier all the way up to your Industrial welder.
