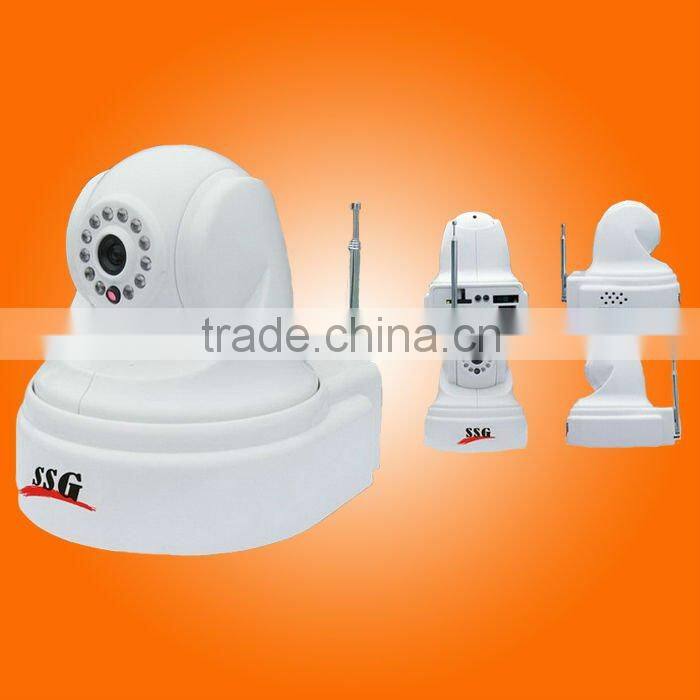

IP Wireless Alarm Camera for Alarm & Video Central Monitoring

Specifications

IP wireless alarm camera for alarm & video central monitoring

How it works:

IP alarm camera will send alarm & video to platform servers by TCP/IP after sensor triggered,then the servers will forward them to platform video wall and pop up to show alarm details and real-time monotoring video.

Functions:

1.IP alarm camera free transmit alarm events to platform via the internet
2.IP alarm camera free upload arm/disarm message to platform via the internet
3.IP alarm camera free timing shake hands with platform uninterruptedly to make routing inspection
4.IP alarm camera free make routing inspection with wired sensors uninterruptedly
5.IP alarm camera free make timing routing inspection with wireless sensors
6.If intruder/thief cut the internet cable to make the terminal can not shake hands with platform,then the platform will alarm immediately
7.IP alarm camera has 3 wired ports:first port for intelligent roller shutter sensor,second port for warning board,third poat for wired sensors
8.IP alarm camera can connect with wired accessories which can by powered by UPS,no need to change battery frequently and more stable then wireless sensors
9.IP alarm camera can work with patrol management remote control,press it to upload guard's ID,name,patrol time to the platform
10.Platform can arm/disarm the host and watch terminal's live video reversely by internet
11.Platform can set routing inspection time interval with the terminals by internet
12.IP alarm camera can connect with outdoor wired warning board to notify the intruder/burglar/thief/passerby "These premises are protected by a 24h monitored video alarm system"
13.Security company name,TEL,LOGO can be carved and printed on the wired warning board and advertise your security company
14.Wired warning board support 3 colors for different working status: green for disarm,red for arm,flashing for alarm
15.IP alarm camera can connect with wired siren which can play out recordeded voice message and make loud sound immediately when sensor triggered to deterrent intruder/burglar/thief,etc.
16.Wired siren's voice message can be customized as you like,default message is "monitoring video is recorded remotely,please get out right away"
17.IP alarm camera can turn on lights immediately when sensor triggered to make dark house bright and deterrent intruder/burglar/thief,etc.
18.IP alarm camera can work with UPS power which can support HUB,MODEM,IP alarm camera,wired sensors working 10 hours more to continue alarm video uploading when power cut
19.IP alarm camera parameters: M-JPEG video compression format, color CMOS megapixel, with 6mm lens,visual range 15 meters,53 degrees visual angle.
20.IP alarm camera with Pan/Tilt, multi-function decoder, infrared as one of the low speed PTZ, 360 degrees video scanning without dead angle.
21.IP alarm camera transmit alarm and video information by tcp/ip protocol which is the fatest in all transmitting types,about 1 to 3 seconds,10 times than the traditional alarm transmitting method.
22.IP alarm camera support smart cell phone APP monitoring,users can use smart phone monitoring shop,house,etc anytime,remote control the camera rotation,etc.

Application occasions:

Suitable for places with internet cable like shops,chain store, jewelry store,super market,warehouse, financial office etc

Recommended configuration:

wired&wireless video alarm host IP029+wireless guard tour remote control+wired 160DB siren&speaker+UPS power sources+wired outdoor warning board+wired intelligent shutter sensor with closing auto arm function +wireless arm/disarm remote control+wireless programming keypad+several wired wide-angle pir motion sensor+several wired door sensors

Parameters:

M-JPEG video compressed format, color CMOS 1 megapixels, including 6 mm lens. Visual range 15 meters. 53 degrees Angle. With Pan/Tilt, multi-function decoder, horizontal 360 degrees , vertical 90 degrees video scanning without dead angle,160DB siren

Working diagram:
