HD Best Speed Dome IP Camera SA7803D-MP ip Camera Software

Specifications

HD Speed Dome IP Camera SA7803D-MP Series

1.Basic Description
SA7803D-MP series based on IP network, achieve network digital surveillance, ransmit clear, smooth video surveillance images.

SA7803D-MP series built-in HD zoom integration camera, advanced H.264 codec, Supports dual streaming, Transmit high-quality H.264 video in the low-bandwidth network environment smooth , also supports MJPEG compression; high performance precision Integration camera achieve zoom, with built-in full-speed PTZ, Suitable for large-scale, multi-angle surveillance and Continuous tracing target; Support Color/BW mode converting, Particularly suitable for outdoor illumination of low environmental; Support audio, alarm ,IR-CUT function,TF card storage,provide third-party systems integration interface.

3. Model

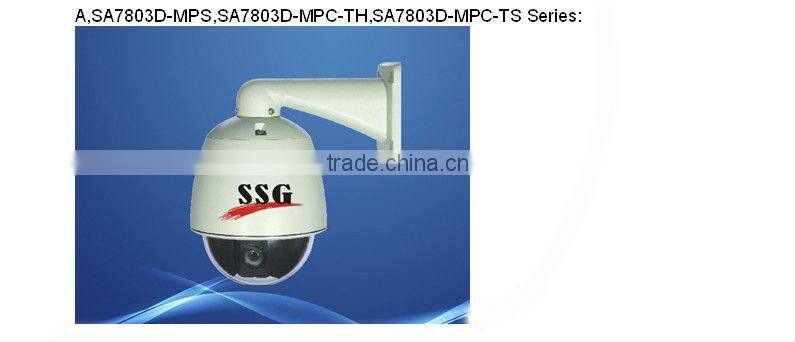

SA7803D-MPS

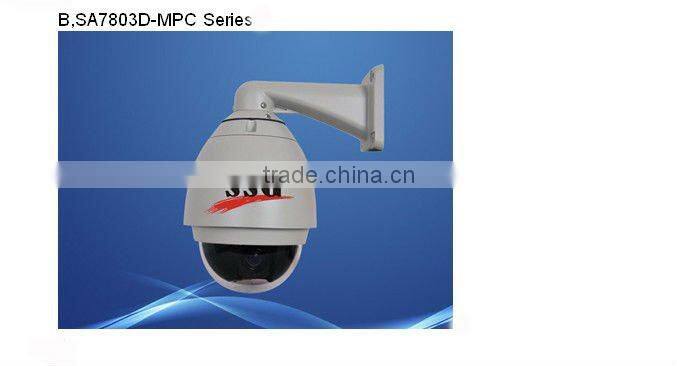

SA7803D-MPC
SA7803D-MPC-TH
SA7803D-MPC-TS

4.Key Features
* Built-in HD zoom chassis camera
* H.264/MJEG is optional, dual streaming,high compression ratio,and high quality.
* Support AWB,AGC,BLC,brightness, chroma, saturation, sharpness adjustment
* Support OSD menu
* Manual control of speed and lens focal length is proportional,ensure smooth and accurate search target
* Horizontal rotation range: 360°, Vertical rotation range :180°
* Preset positions:256;Precision≤0.01º
* Proportional Pan
* Auto Scan,Horizontal /Vertical rotation range angle can be set,scanning speed adjustable
* Patrol:2 groups, each patrol up to 8 presets
* Timed task: 5 groups; Preset / Pattern / Patrol / Rotate/ Auto Scan Resume Function
* With memory function in case of power-down
* Title, date and time, stream information, azimuth angle, zoom display Support two-way talking
* Support Micro SDHC storage; SD2.0 standard
* Support TCP/IP, UDP, RTSP protocols
* Support motion detection, network fault detection and alarm video, image snapping
* Built-in Web server enables the use of a standard Web browser for viewing and management.
* Support ONVIF protocol
* Support 1 channel BNC video output

5.Applications Scenarios
Applicable to forests, scenic, highway, railway, airport, port, square, park, street, railway stations, stadiums, residential district and other places.
