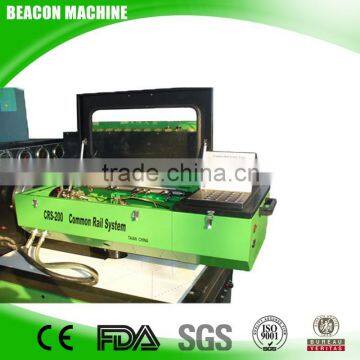

Common rail tester common rail injector tester bosch common rail injector tester CRS200

  The function of the tester for CR high pressure pumps is to provide
the desired signal to drive the solenoid in the pump being tested. CRS200
common rail Tester can used for testing following pumps: BOSCH
CP1CP2CP3SIEMENS, DENSO HP2 AND HP3. It has the functions to test
the Electromagnetic and Piezoelectric injectors.
It also can test 6 common rail injectors in one time.
Design Features
* Modulated driving signal to ensure the safety of the solenoid of the CR
pump
* Adjustable duty cycle for the driving signal
* Short circuit protection for the output circuitry of the solenoid driving
signal
* Measure and LCD display rail pressure
* To test if the CR injector is still function, To connect a CR injector to a
high pressure fuel source by a high pressure fuel line and to the CR tester by
harness. The tester is set to continuous injection mode. The CR injector is in
normal condition, if it is capable to inject fuel under the driving signals by
the tester.
* To test injector spray atomization, To connect a CR injector to a high
pressure fuel source by a high pressure fuel line
and to the CR tester by harness. The tester is set to single injection mode to
allow observing the nozzle spray pattern to judge if the nozzle is normal or
orifice plugged.
* Checking the Injectors return oil and injection oil.
