Beacon 12PSB-500 Bosch Diesel Fuel Injection Pump Electrical Test Bench by Manufacturer
- Qingdao or any port of China
- T/T Credit Card
You May Like
-
Beacon 12PSB-560 Diesel Test Bench for Diesel Fuel Injection Pumps
-
12PSBG-3 Bosch Diesel Fuel Injection Pump Test Bench From Manufacturer
-
2015 High Quality 12PSBG-7F Diesel Injection Pump Test Bench for Garage Service With CE$ISO
-
Taian Beacon Machine MINI12PSB Diesel Fuel Injector Test Equipment for Small Business
-
Top Selling Products High Pressure MINI12PSB Bosch Diesel Fuel Injection Pump Calibration Test Machine
-
12PSB Bosch Diesel Fuel Injection Pump Calibration Machine From Manufacturer
Product Details
| Place of Origin | Shandong, China | Brand Name | beacon | |
| Model Number | 12PSB-500 | Power | Electronic | |
| Usage | Auto Testing Machine |
Product Description

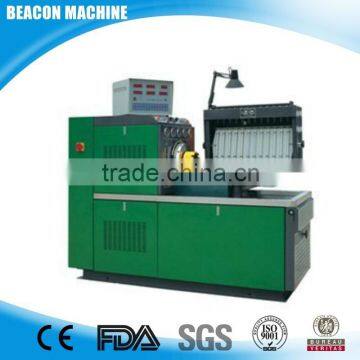

12PSB-500 bosch diesel fuel injection pump electrical test bench by manufacturer

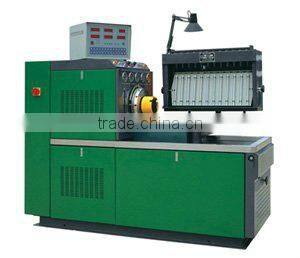

Picture of Injection pump test bench

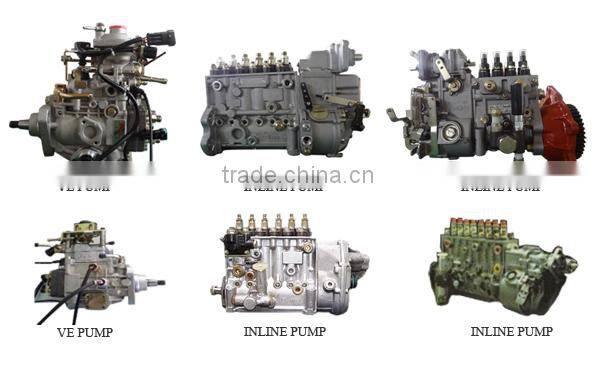

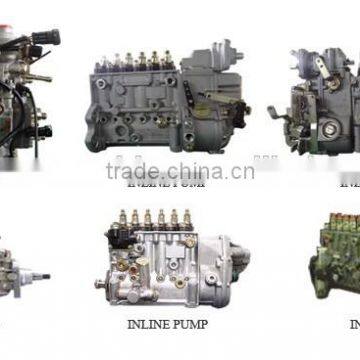

Application
Technical parameter:
| 1. Adjustable rotation speed range | 0~4000RPM |
| 2. Double series of graduates: | 45/150CC |
| 3. Volume of oil tank: | 100L |
| 4. Temperature stabilization | 40±2 |
| 5. Test oil filtering unit | 5μ |
| 6. DC. Supply | 12/24V |
| 7. Feed pressure: | 0~0.4MPa (low), 0~4MPa (high) |
| 8. Air pressure (MPa): | -0.03~0.3 |
| 9. Rack travel range: | 0~25mm |
| 10. 3-phase power supply: | 380V/50Hz or 220V,60Hz,3phase |
| 11. Flywheel inertia’s moment: | 0.8kg·m2 |
| 12. Center height | 125mm |
| 13. Output power: | 7.5kw~15kw |
| 14. Overall dimensions | 200X90*170CM |
| 15. Net weight (kg) | 1000 |
| 16. Average trouble-tree working time of test stand: | ≥2500h. |
Function
Function :
1.The testing debugging about oil-supply amount of each cylinder and oil-supply uniformity of injection pump.
2. Check the oil-supply spacing of each cylinder and oil supply starting point in the static state.
3. Check and adjust the performance of mechanical speeder.
4. The sealing inspection of injection pump.
5. The test of value of distribution pump.
6. The test of loop oil of distribution pump.
7. Check the intracavity pressure of distribution pump.
8. Check the performance of air-film mechanical speeder.
9. Check the pump of pressurized compensatory .
10. The inspection of oil delivery pump.
Option(On Request):
1.Oil lubricate
2.Measurement of rack travel
3.Printer

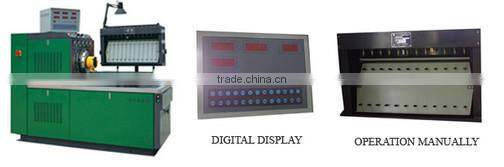

Characteristics
Main Characteristics:
1.Advanced frequency conversion technology with rotation speed,temperature,count numeral control.
2.Measuring the Rack Bar journey exactly.
3.Debug speed curve of injecting oil pump.
4.Automatic oil unloading device
5.Print and keep debugging data of pump.
6. Large inertia flywheel--- steady drive and good balance.

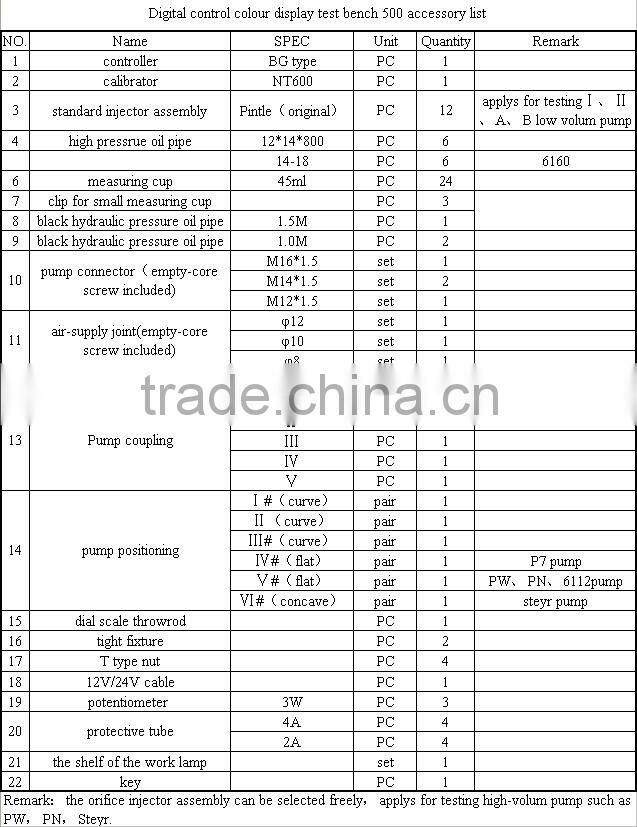

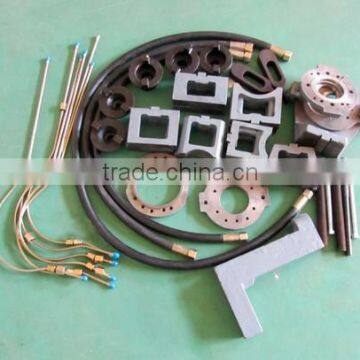

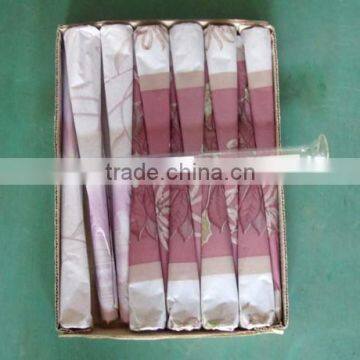

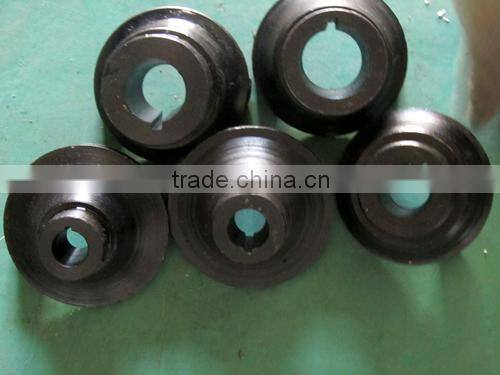

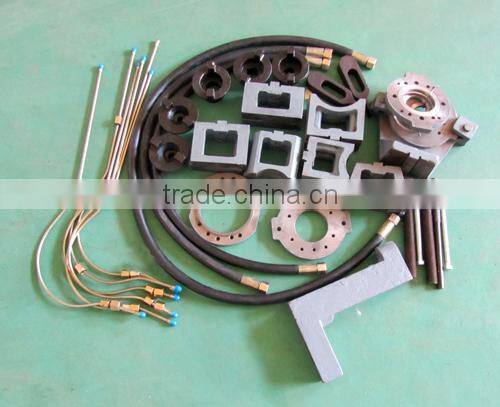

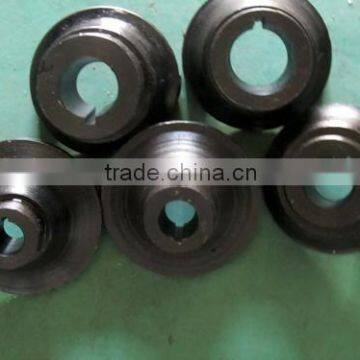

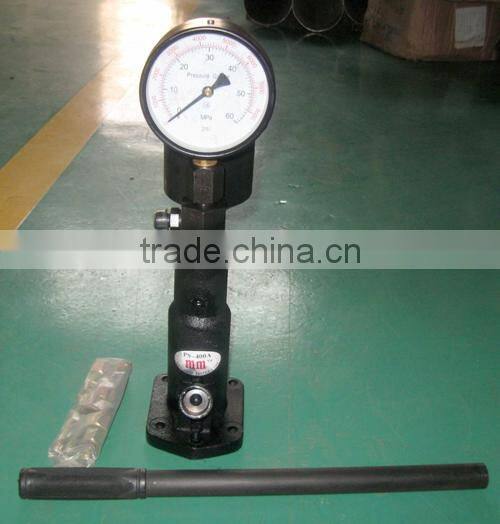

Accessories
Taian Beacon Machine Manufacturing Co., Ltd. is the leading manufacture in diesel injection pump test bench and turbocharger balancing machine in China ,
our products already sold to more than 100 countries . Our products including common rail injector test bench ,common rail injector tester (CRDI),
diesel injection pump test bench EUI/EUP tester cam box ,Denso ECD-V3 ,V4, V5 pump tester ,PT cummins pump and injector tester ,
common rail tools and spare part .
Welcome you to visit our factory and cooperate in the future!!!
--Welcome to conact with us
