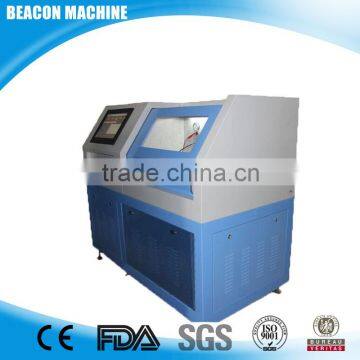

CRS-709D Common Rail Diesel Auto Electrical Starter and Alternator Test Bench With Eui Eup System and Cam Box

                 CRS-709D  common rail diesel test bench  with eui eup system and cam box  ,   starter and alternator test bench

1.Industrial computer control ,WINDOWS OS ,19inch LCD screen display

2.Equipped with original imported high - precision flow sensor and automatic turning over measuring cup to do the testing,

these two systems can be standby equipment for each other, also ensure the accuracy and reliability of testing.

3. Industrial PC real-time control and display, WINDOWS OS.

4. Oil quantity sensor test oil quanyity, 19 inch LCD screen display

5. Adopted original BOSCH common rail pump to provide 0~2000 bar rail pressure.

6. Rail pressure can be tested in real time, closed-loop control, Stable pressure, overvoltage protection

7. Adjustable pulse width and frequency of injector’s driving signal

8. Injection times can be set free

9. Preset about 500kinds of injector data, easy to search and compare

10. Short circuit protection

11. Adopted super frequency converter to control rotation speed and insure the testing accuracy

12. Wide operation space, protective plexiglass cover to make sure your safe

>>>Function

1. This system support lots of injector brand, such as BOSCH, DENSO, DELPHI, SIMENS and so on,

it can test CP1 CP2 CP3 HP0 HP3 HP4 pump.

2. Check the sealing of CRI (common rail injector)

3. Test oil quantity of CRI during pre-infection period

4. Test oil quantity of CRI under full load

5. Test oil quantity of CRI under idle speed

6. Test oil quantity of CRI under correction working condition

7. Test oil-returning quantity of CRI

8. Check the uniformity of CRI

9. Can test all kinds of CRI pumps

10. Provide open database, you can upgrade, modify the data.

11. Testing finish , report formed, you can save or print it.

 >>>Technical Parameter

  --Characteristics

1,the machine is with eui eup system and cam box with all adpater

2.it use original  German flow sensor which is with high quality

3.the machine use the brand new and original bosch rail

4.the  price of crs709d has included all the functions ,for example :test the piezo injector ,hpo pump test  function ,DRV valve function  and the pump delivery test function

5.the crs709d use new update common rail system which is similar with the original eps815 .

6.the machine  use original CP1 pump .

>>>More fucntions (Our advantage):
1. With testing HPO pump functions
2. DRV valve
3. Original bosch rail and original German flow sensor
4 Tesing piezo injector functions
5. Pump flow
6. EUI EUP function
>>>OPTION(On request):
1. VP37 pump test system
2. Vp44 test system
3. Oil lubricate

4.HEUI function

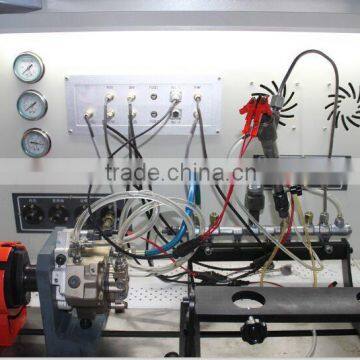

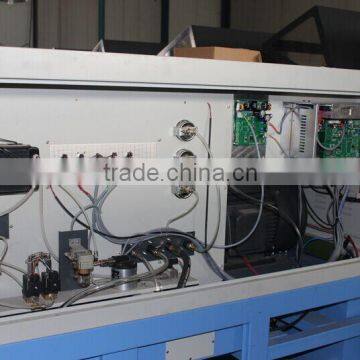

 >>> Photos

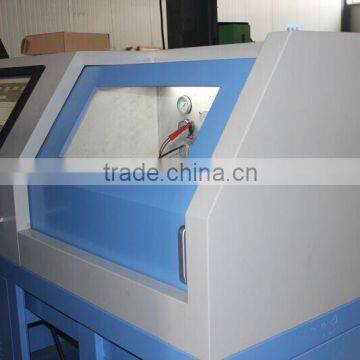

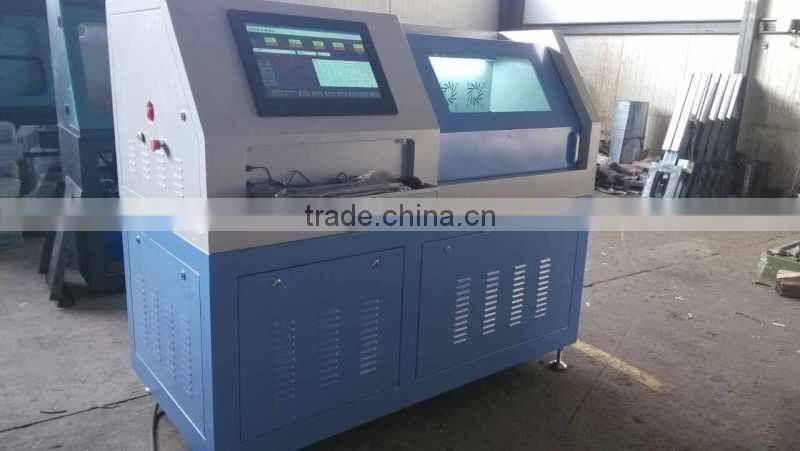

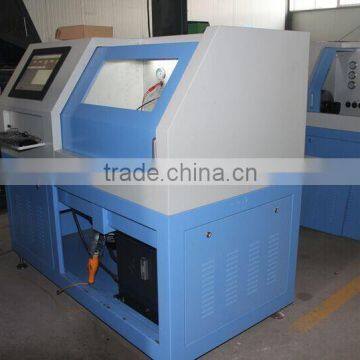

 new future:1.insert computer  2. sliding cover, like the following photo
