Product Details
| Place of Origin | Shandong, China | Brand Name | BEACON | |
| Model Number | HBQ-300 | Power | Electronic | |
| Usage | Balancing Machine |
Product Description

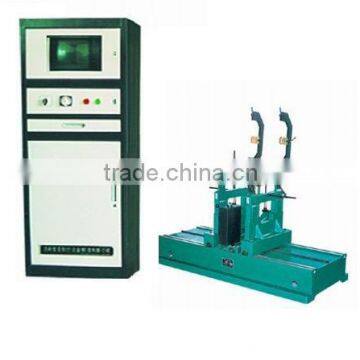

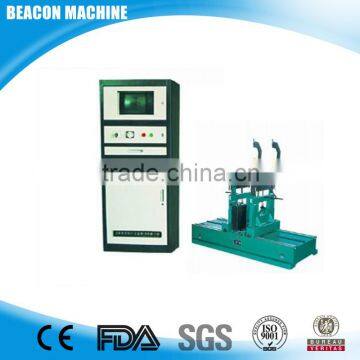

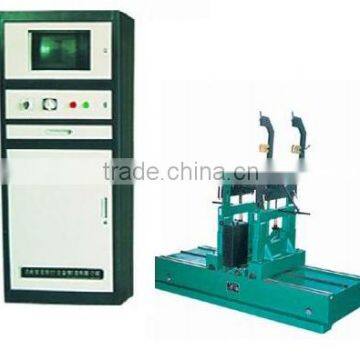

HBQ-300 belt drive vertical turbo balancing machine price
>>>PRODUCTION DESCRIPTION
This series is hard supporting horizontal dynamic balance machine, with roller bearing,
the circle take drag, regular for double speed motor drive, "A" type for frequency conversion motor speed and frequency converter, the industrial control computer for data processing,
color screen real-time display don’t balance phase Angle and value, real-time speed,lathe bed all
use whole casting, the stability is good.Widely used in electric motors, blower, diesel engine, auto parts, etc, can be inthe single side, double side and multiple correction plane balance measurement, suitable for axle, dish out and center of gravity of the rotor. Have high efficiency,
precision accurate, show intuitional, reliable quality, easy maintenance, the characteristics of software with ordinary workpiece and standard rotor two calibration function, overcoming the other hard supporting balance machine measurement system to users to calibration equipment of the defect, and a variety of measurement method and function to choose, can realize the input parameters, preview, the experiment, the results storage, print, operating all adopt the localization menu structure, the man-machine dialogue, automatic hints.
>>>DETAILS at A GLANCE
industrial control computer 19 "LCD color screens
Windows XP Chinese and English system double choice
With GB-2000 general microcomputer balance measuring system
Automatic program-controlled amplifier module
Any workpiece scaling function, arbitrary Angle clamp compensating and workpiece
information storage
Qualified quantity showed that adjustment function measurement cycle
Signal amplifier amplification and manual adjustment, signal self-check, automatic
diagnosis
Vector graphics, waveform and out of balance, shows at the same time
Surplus balancing g and unbalanced torque, the g cm, g mm can choose to display
>>>OPTIONAL FUNCTION
1. Balance Angle automatic tracking function
2. Parking automatic positioning function
3. Vector Angle function decomposition
4. Lathe bed according to user requirements lengthen
5. Supporting shaft neck can according the user demand increased
>>>TECHNICAL PARAMETER
| Model | HBQ-300 |
Workpiece weight:Kg | 5-300 |
Workpiece diameter:mm | 1200 |
Distance between two supporting:mm | 150-1500 |
Balancing rotating speed:(r/min) | 300-2500 |
Minimum achievable residual unbalance (Gmm/kg) | ≤.05 |
Unbalance reductionRa tio % | ≥90 |
Driver power:KW | 4.0 |
Speed adjustment mode: | frequency |
Welcome you to visit to our factory ,and show you how to operate for free
One year warranty for parts , Lifetime technical support
If you become our old customers , will give you lowest price
Q1: What is your Trade Terms?
A: FOB CFR CIF EXW DDP and DDU
Q2: What is your payment terms?
A: T/T,Western Union ,PayPay,Escrow and L/C
Q3: What is your delivery time?
A: Test bench is 7-10 working days,tester, diagnostic tool and injectors,we have stock.
Q4: Why should I choose your product?
A: We can provide you the best quality and the most competitive price ,and we have our own engineer,if you have any requirements you can contact us directly~
