Product Details
Place of Origin | Shandong, China | Brand Name | Beacon | |
Model Number | YYW-1000A | Power | Electronic | |
Usage | Auto Testing Machine |
Product Description
Y

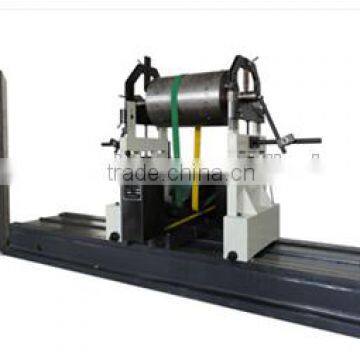

YW Series YYW-1000A abro balancing machines pvt. ltd with high quality
Main Features:
Hard backing horizontal dynamic balancing machine;
Using the wheel backing, universal coupling to drive;
Varibal frequency control motor;
Industrial control computer data processing, color screen real-time shows amount and angle of unbalance, and rotation speed;
Bed is overall foundry with good stability;
Balance and measure on single side, double side
Product Features:
This series is hard supporting horizontal dynamic balance machine, with roller bearing, universal couplings drive, regular for double speed motor drive, "A" type for frequency conversion motor speed and frequency converter, the industrial control computer for data processing, color screen real-time display don’t balance phase Angle and value, real-time speed, lathe bed all use whole casting, the stability is good.Widely used in electric motors, blower, diesel engine, agricultural machinery, textile machinery, and other industries, can be in the single side, double side and multiple correction plane balance measurement, suitable for axle, dish out and center of gravity of the rotor. Have high efficiency, precision accurate, show intuitional, reliable quality, easy maintenance, the characteristics of software with ordinary workpiece and standard rotor two calibration function, overcoming the other hard supporting balance machine measurement system to users to calibration equipment defects, and the coupling compensation function and so on many kinds of measuring method and function to choose, can realize the input parameters, preview, the experiment, the results storage, print, operating all adopt the localization menu structure, the man-machine dialogue, automatic hints..
Character for other models
Model | Mass scope of workpiece kg kg | Biggest diameter workpiece mm | Two span of supports mm | Trunnion support mm | Balancing speed r/min | Min achievable residual unbalance amount g.mm/kg | Unbalance reduction ration % | Motor power kw | mode of speed regulation |
YYW-160A | 5-160 | Φ950 | 60-1420 | Φ10-90 (Φ90-180 for choice) | 300-1500 stepless speed regulation | ≤1 | ≥90 | 2.2 | Variable frequency speed regulation |
YYW-300A | 10-300 | Φ1200 | 60-1700 | Φ10-90 (Φ90-180 for choice) | 300-1500 stepless speed regulation | ≤1 | ≥90 | 5.5 | Variable frequency speed regulation |
YYW-500A | 20-500 | Φ1500 | 70-1600 | Φ20-120 (Φ120-240 for choice) | 300-1500 stepless speed regulation | ≤1 | ≥90 | 5.5 | Variable frequency speed regulation |
YYW-1000A | 20-1000 | Φ1500 | 70-2300 | Φ20-120 (Φ120-240for choice) | 300-1500 stepless speed regulation | ≤1 | ≥90 | 7.5 | Variable frequency speed regulation |
YYW-1600A | 30-1600 | Φ1800 | 100-2300 | Φ20-120 (Φ120-240for choice) | 300-1500 stepless speed regulation | ≤1 | ≥90 | 11 | Variable frequency speed regulation |
YYW-3000S | 50-3000 | Φ2000 | 300-3000 | Φ20-120,Φ120-240 | 110-1170 stepless speed regulation | ≤1 | ≥90 | 11 | Variable frequency speed regulation+Four gear mechanical transmission |
YYW-3000A | 100-3000 | Φ2400 | 300-3000 | Φ40-180,Φ180-300 | 110-1170 stepless speed regulation | ≤1 | ≥90 | 11 | Variable frequency speed regulation+Four gear mechanical transmission |
YYW-5000A | 200-5000 | Φ2400 | 340-2960 | Φ40-180,Φ180-300 | 110-1170 stepless speed regulation | ≤1 | ≥90 | 18.5 | Variable frequency speed regulation+Four gear mechanical transmission |
YYW-10000A | 300-10000 | Φ2400/ Φ3200 | 240-5100 | Φ50-200,Φ200-360 | 110-1140 stepless speed regulation | ≤1 | ≥90 | 45 | Variable frequency speed regulation+Four gear mechanical transmission |
YYW-20000A | 500-20000 | Φ2400/ Φ3200 | 300-5100 | Φ50-200,Φ200-360 | 110-1140 stepless speed regulation | ≤1 | ≥90 | 55 | Variable frequency speed regulation+Four gear mechanical transmission |
YYW-30000A |
| Φ3000/ Φ3600 | 400-6500 | Φ60-220,Φ220-400 | 110-1140 stepless speed regulation | ≤1 | ≥90 | 75 | Variable frequency speed regulation+Five gear mechanical transmission |
