Home > Products > Solar Cell > 6*6 Monocrystalline A Grade Solar Cell 3x6 Polycrystalline Cells B Grade
6*6 Monocrystalline A Grade Solar Cell 3x6 Polycrystalline Cells B Grade
US$ 0.35 - 0.57
/ Piece
1000 Pieces(Min. Order)
- Shanghai/ Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | GH solar | |
| Model Number | GH- 9269 | Material | Monocrystalline Silicon | |
| Size | 6x6 |
Product Description
Specifications
6*6 monocrystalline A grade solar cell 3x6 polycrystalline cells B gradeOur products bear TUV, UL, MCS, CE, membership etc.
6*6 monocrystalline A grade solar cell 3x6 polycrystalline cells B grade
We are engaged in designing, producing solar panel and system, hope can give you best support in near future.
The following is a part of our products data
If you want to get more information please ask me feel free, my Skyp: jackhuang1232, hope we could give you best support in near future.

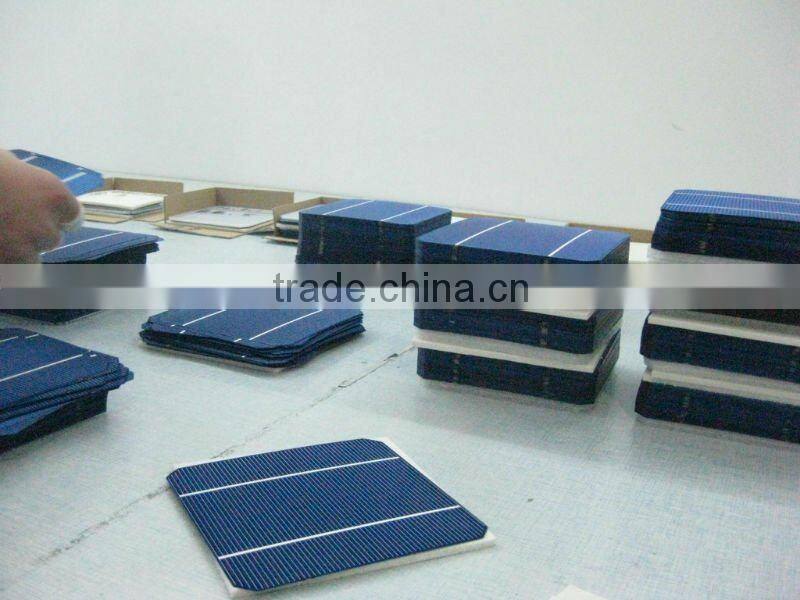

A typical sample of cells is as shown on the picture.
Weight: about 6.5g
Dimensions: 3 1/4 inches x 6 inches, or 80 mm by 150 mm
Average Voltage (Volts): 0.5 V (up to 0.6 v in sunny conditions)
Average Current (Amps): 3.6 Amps
Average Power (Watts): 1.8 W
Untabbed 3x6 solar cells, B grade, polycrystalline. These cells are of the second sorting from our 3x6 stock, they have small chips, dis colourisation and silver paste spots. The cells output very close or the same as the same as the A Grade cells.| 1.GHC-125M*165: | |||||
| Format: 125mm*125mm±0.5mm,diagonal:165mm Thickness: 200um±20um | |||||
| Efficiency(%) | Pmax(W) | Vmp(V) | Imp(A) | Voc(V) | Isc(A) |
| 18.50 | 2.86 | 0.529 | 5.410 | 0.638 | 5.673 |
| 18.25 | 2.82 | 0.527 | 5.350 | 0.636 | 5.648 |
| 18.00 | 2.78 | 0.525 | 5.295 | 0.634 | 5.621 |
| 17.75 | 2.74 | 0.522 | 5.245 | 0.629 | 5.539 |
| 17.50 | 2.71 | 0.521 | 5.212 | 0.627 | 5.569 |
| 17.25 | 2.68 | 0.518 | 5.169 | 0.626 | 5.536 |
| 17.00 | 2.64 | 0.515 | 5.129 | 0.624 | 5.525 |
| 16.75 | 2.60 | 0.511 | 5.085 | 0.622 | 5.511 |
| 16.50 | 2.56 | 0.519 | 5.030 | 0.621 | 5.494 |
| 16.25 | 2.53 | 0.506 | 4.988 | 0.620 | 5.542 |
| 16.00 | 2.48 | 0.500 | 4.966 | 0.618 | 5.515 |
| 15.25 | 2.36 | 0.500 | 4.720 | 0.614 | 5.497 |
