Home > Products > Solar Cell > Best Quality,price and Service, 2.86watts Photovoltaic Solar Cells From China

Best Quality,price and Service, 2.86watts Photovoltaic Solar Cells From China

FOB Price

US$ 0.35 - 0.48 / Piece

1000 Pieces(Min. Order)

Port Ningbo/Shanghai
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	Ganghang
Model Number	GH-C-12M	Material	Monocrystalline Silicon
Size	125*125 mm	Number of Cells	1
Max. Power	2.86W

Product Description

Specifications

1.Photovoltaic cells: CE,TUV etc.
2.125*125 or 156*156 with 2bb/3bb
3.made of solar panel with high efficiency up to 18%

1.Photovoltaic cells: CE,TUV etc. 2.125*125 or 156*156 with 2bb/3bb 3.made of solar panel with high efficiency up to 18%

The more information of the Photovoltaic cells as below:

Main products: solar cell, solar panel, solar power system etc.
MOQ: 100pcs(sample order and trial order are welcomed)
Warranty: 6month-1year for solar cells, 5years product warranty,10years 90% and 20years 85% for solar panels, 1year for solar systems
OEM order: welcomed
Certificate: CE,TUV, UL etc.
Package: carton, wooden case or as your spec.
Delivery term: about 30days by sea
Widely used for electricity, home, industry, communication, navigation, irrigation, PV house and remote power requirements etc.

Parameter:

1.GHC-125M*165:
Format: 125mm*125mm±0.5mm,diagonal:165mm, Thickness: 200um±20um
Efficiency(%)	Pmax(W)	Vmp(V)	Imp(A)	Voc(V)	Isc(A)
18.50	2.86	0.529	5.410	0.638	5.673
18.25	2.82	0.527	5.350	0.636	5.648
18.00	2.78	0.525	5.295	0.634	5.621
17.75	2.74	0.522	5.245	0.629	5.539
17.50	2.71	0.521	5.212	0.627	5.569
17.25	2.68	0.518	5.169	0.626	5.536
17.00	2.64	0.515	5.129	0.624	5.525
16.75	2.60	0.511	5.085	0.622	5.511
16.50	2.56	0.519	5.030	0.621	5.494
16.25	2.53	0.506	4.988	0.620	5.542
16.00	2.48	0.500	4.966	0.618	5.515
15.25	2.36	0.500	4.720	0.614	5.497

2.GHC-125M*150:
Format: 125mm*125mm±0.5mm,diagonal:150mm, Thickness: 200um±20um
Efficiency(%)	Pmax(W)	Vmp(V)	Imp(A)	Voc(V)	Isc(A)
18.50	2.73	0.532	5.132	0.634	5.382
18.25	2.70	0.530	5.094	0.632	5.365
18.00	2.66	0.528	5.038	0.630	5.348
17.75	2.62	0.525	4.990	0.628	5.330
17.50	2.59	0.523	4.952	0.627	5.318
17.25	2.57	0.520	4.945	0.626	5.301
17.00	2.53	0.517	4.899	0.625	5.282
16.75	2.49	0.514	4.856	0.623	5.277
16.50	2.46	0.510	4.821	0.622	5.275
16.25	2.42	0.508	4.770	0.620	5.251
16.00	2.38	0.505	4.724	0.618	5.245
15.25	2.25	0.500	4.550	0.610	5.104
3.GHC-156M:
Format: 156mm*156mm±0.5mm, Thickness: 200um±20um
Efficiency(%)	Pmax(W)	Vmp(V)	Imp(A)	Voc(V)	Isc(A)
18.50	4.398	0.525	8.337	0.625	9.142
18.25	4.338	0.523	8.294	0.623	9.080
18.00	4.279	0.520	8.229	0.621	9.011
17.75	4.222	0.516	8.178	0.619	8.942
17.50	4.163	0.512	8.131	0.617	8.869
17.25	4.104	0.508	8.077	0.615	8.803
17.00	4.044	0.503	8.038	0.613	8.763
16.75	3.990	0.501	7.973	0.612	8.698
16.50	3.935	0.499	7.889	0.611	8.620
16.25	3.877	0.497	7.800	0.611	8.545
16.00	3.818	0.494	7.725	0.610	8.494
15.75	3.760	0.492	7.647	0.610	8.444
15.50	3.700	0.489	7.565	0.610	8.398
15.25	3.641	0.486	7.490	0.609	8.362
15.00	3.581	0.483	7.419	0.608	8.338
4.GHC-156P:
Format: 156mm*156mm±0.5mm, Thickness: 200um±20um
Efficiency(%)	Pmax(W)	Vmp(V)	Imp(A)	Voc(V)	Isc(A)
17.00	4.13	0.532	7.800	0.635	8.531
16.75	4.05	0.532	7.610	0.631	8.498
16.50	3.99	0.529	7.545	0.629	8.359
16.25	3.94	0.526	7.490	0.626	8.117
16.00	3.89	0.523	7.438	0.624	7.982
15.75	3.83	0.519	7.379	0.620	7.916
15.50	3.77	0.515	7.323	0.616	7.868
15.25	3.72	0.512	7.253	0.613	7.813
15.00	3.66	0.509	7.189	0.610	7.764
14.75	3.60	0.505	7.139	0.606	7.726
14.50	3.54	0.500	7.088	0.603	7.685
14.25	3.48	0.495	7.029	0.600	7.637
14.00	3.42	0.488	7.015	0.596	7.631

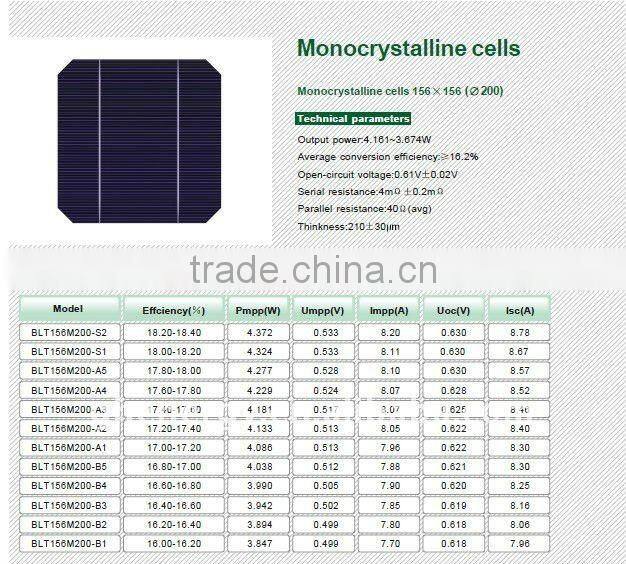

Image of the Photovoltaic cells for your reference:
