Chinese weifang steyr 150KW Natural gas generator

FOB Price

US$ 2,000 - 50,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Product Description

Generator	Genset Model	YDNGFZ-150
	Rated Frequency	50HZ
	Power Factor	0.8
	Rated Voltage	400/230V
	Rated Power (KW/KVA)	150/188
	Standby Power (KW/KVA)	160/200
	Rated Current (A)	270
	Phase/Wire	3Phase, 4Wire
	Overall Size (mm)	3250×1650×1800
	Weight (kg)	3200
Gas Engine	Model	WP10QDZL-NG
	Brand	Steyr
	Type	In-line, vertical, 4-stroke, water-cooled, direct injection
	No.of Cylinder	6
	1 Hour Power (kw)	198
	12 Hour Power (kw)	180
	Rate Rotate Speed (rpm)	1500
	Compression Ratio	10.5: 1
	Bore×Stroke (mm)	126×130
	Ignition Sequence	1-5-3-6-2-4
	Intake Method	Turbocharged inter-cooled
	Intake Pressure (kPa)	145
	Mean Effective Pressure (kPa)	1656
	Gas Consumption (g/kw.h)	≤188
	Oil Consumption Ratio	≤0.8%
	Discharge Temperature (℃)	≤600
	Cooling Type	Water cooling
	Lubrication Way	Forced pressure
	Starting Mode	Electric
Alternator	Model	UCI274H
	Prime Power (kw/kva)	150/188
	Rated Frequency	50HZ
	Current (A)	270
	Rated Voltage	400/230V
	Degree of protection	IP23
	Voltage Regulation	at most ±1
	Excitation Type	Brushless
	Insulation Class	H
Control System	Model	Smartgen6110
	Working Voltage	DC8.0V to DC35.0V, continuous
	Overall Dimensions	197 mm x 152 mm x 47mm
	Panel Cutout	186mm x 141mm
	Working Condition	Temperature: (-25~70)ºC; Humidity: (20~90)%
	Weight	0.56kg

Product Overviews

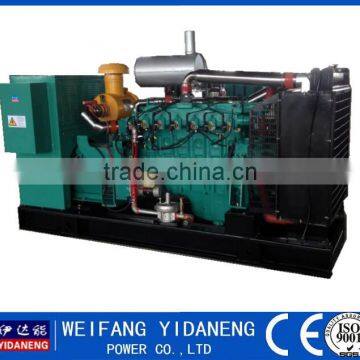

*Steyr natural gas generator Picture's Show :

Spare part

*Spare Part :

Our Services

*Guarantee & Services:

Supply Service
Pre-Sale Services High performance products with installation, design or material and quick repairmant; Expert engineers offer technical consultation and assort guidance to our customers, such as questions and offer technical help during any time.
Quality of Service Professional technical adviser; Once we get inform from our customer, we send technical engineers to scene and help to installation and debug the generator, and cooperate with customer to check and accept the generator. The products with most appropriate design and optimization.
After-Sales Service Establish customer service files for end users, provides operations, technical guidance, tracking service, regular visits, life-long maintenance. Design machine room and the offer follow-up service and regular inspection.
Free quick-wear parts offer spare parts and technical help at any time.

Packaging & Shipping

*Plywood Case &Stretch Film Packing

*Guarantee & Warranty
1.	1 year or 1500 running hours;
2.	Any trouble of breakdown caused by installation, design or material, we will take charge of repairment;
3.	Any trouble or breakdown of the easily damaged parts and other parts with cost price, and our engineers can help to repair the generator to work again.
4.	We will repair the fault report or compliant received with 2 hours after the reply. After receiving the city’s emergency services 12 hours field to reach the scene within 48 hours. (Service implementation of the agreement by foreign customers).
5.	During the warranty period, if the reason is because the machine itself or damage resulting from failure (excluding wear parts). We will be free for you to repair or replace parts. Outside the warranty period, we will change a fixed fee provision, spare parts price will be provided..
*Note: generator warranty for one year from the date of the first motor car 1500 hours. (Whichever comes first* )**
