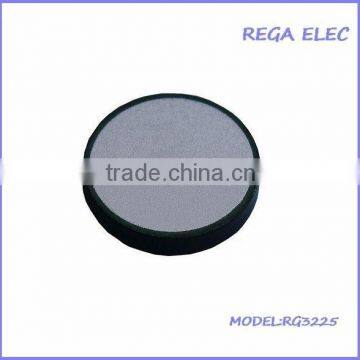

D32 Zinc Oxide Varistor/Resistor for Surge Arrester/ Surge Arrestor, Customization is acceptable, 32*25

FOB Price

US$ 0.5 - 1.5 / Piece

2000 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Specifications

1. Metal oxide Varistor For surge arrester

2. Since 1983

3. ISO9001:2008

4. Good non-linear characteristics.

5. Full face metalized electrodes.

6. 100% production tested.

7. All ratings available,accept customized

Common use Zinc Oxide Varistor Technical Parameters

Type	Nominal discharge current	Potential gradient	Max.ratio of residual voltage	4/10us	2ms	Kct
	kA	V/mm	≤	kA	A	≤
35×3.5	2.5	220±10	1.9	10	100	/
30×25~31	5	225±10	1.85	65	100	1.05
32×25~31	5	225±10	1.85	65	100	1.05
35×25~31	5	225±10	1.85	65	150	1.05
40×25~31	10	220±10	1.83	100	250	1.03
42×25~25	10	220±10	1.83	100	250	1.03
48×25~25	10	215±10	1.8	100	400	1.03
56×21	10	210±10	1.75	100	600	1.02
72×21	10	205±5	1.68	100	800	1.02
85×21	20	200±5	1.65	100	1000	1.02
115×21	20	190±5	1.63	100	1500	1.02

Any trial order in small quantity is welcomed.
