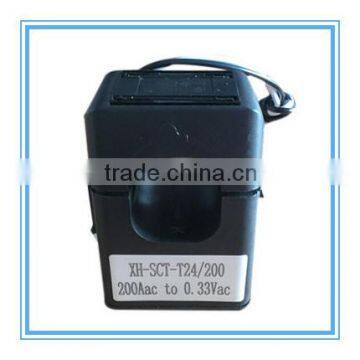

SCT-T24 200A/0.33v Split Core Current transformer low cost current transformer
- shanghai
- T/T Credit Card
You May Like
-
SCT-T10 Split Core Current transformer low cost current transformer
-
SCT-T10 Split Core Current transformer window size 10mm Split CT clamp on current transformer
-
UL mini Split Core Current Transformer Clamp on AC Current Transducer
-
SCT -T10 5-80A 10mm Split Core Current Transformer with UL
-
16mm 120A/0.33v split core current transformer with ETL CE
-
16mm 100A/33.3mA split core current transformer with ETL
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Jiangyin Spark | |
| Model Number | XH-SCT-T24 | Usage | Current | |
| Phase | Single | Coil Structure | Toroidal | |
| Coil Number | Other, 3000 |
Product Description
Split core current transformer with high quality and CE UL certification
1,Rated Voltage:0.66KV
2,Insulation Voltage:2KV
3,Rated Frequency:50HZ / 60HZ
4,Operating Temperature:-15 ℃ to 60 ℃
5,Flame resistance:UL94-V0
6,Certificates:CE,ETL
SCT-24
Features
1) The structure of the self-locking, safe, easy to install, portable
2) Wide inner window, allowing clamping of big cables or bus-bars
3) Wide range of sizes to accommodate all the existing installations
4) Isolated plastic case recognized according to UL94-V0
Specification
| Model | SCT-24 | ||||
| Current Ratio | 100A/40mA | 200A/40mA | 200A/66.7mA | 400A/80mA | 100-400A/0.333V |
| Primary Current (A) | 100A | 200A | 200A | 400A | 100-400A |
| Max. Current (A) | 150A | 240A | 240A | 480A | 480A |
| Output | 40mA | 40mA | 66.7mA | 80mA | 0.333V |
| Load Resistance (Ω) | 50Ω | 50Ω | 50Ω | 50Ω | / |
| Turns Ration | 2500:1 | 5000:1 | 3000:1 | 5000:1 | / |
| Class | 0.5/1.0 | ||||
| Insuliation Category | CATIII | ||||
| Operating Condition | -20℃ ~ +50℃, ≤85%RH, No condensation, IN-house & Any direction installable | ||||
| Storage Condition | -30℃ ~ +50℃, ≤85%RH, No condensation | ||||
Graph of split core current transformer
Split core current transformers UL CE certificates
Company info of split core current transformer factory
Split core current transformers transportation
