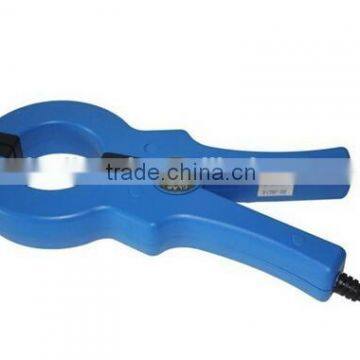

1000A/5A clamp on current transformer ct
- 100000 Piece / Pieces per Month
- Shanghai
- Credit Card
You May Like
-
1000A/5A clamp on current transducer ct
-
0-600A CE UL ETL Plastic Split Core ct clamp on current transformer
-
100A 16mm hole diameter split core sensor 100A 33.3mA
-
CE 50mm Current Transformers 1200A Split Core Current Transducer
-
300A/5A T type split core current transformer
-
250A/5A T type split core current transformer
Product Details
| Place of Origin | Jiangsu, China | Brand Name | JIANGYIN SPARK | |
| Model Number | XH-SCT-T06/T10/ T16/ T24/36 | Usage | Other, Electronic, Consumption Sensor | |
| Phase | Single | Coil Structure | Toroidal | |
| Coil Number | Autotransformer |
Product Description
Feartures Of 1000A/5A clamp on current transformer ct
Features:
Small size, low cost
High secondary turns
Secure locking hinge
Features:
Maximum continuous primary current 5A to 5000AAC
Current Ratio: 3000: 1
Output: 0.333V, mV or mA.
Accuracy: ± 1% from 5% to 120% of rated current
Insulation Voltage: 600VAC
Maximum Primary Voltage: 5000VAC(Insulated Conductor)
Phase angle: Less than 2 degrees at 50% of rated current
Frequency Range: 50 Hz to 400 Hz
Operating Temperature: -15C to 60C.
Leads: 4Foot(105cm), UL 1015, Twisted Pair, 0.34 mm2(22AWG)
CE recognized, and RoHS compliant
Output and leads can be customized
Drawing Size Of 1000A/5A clamp on current transformer ct
Model | I.D. | Ratio | Rated Amps | Accuracy |
XH-SCT-T06 | 6mm | 1000:1 | 1, 5,10, 15, 20, | 0.5 , 1.0 |
XH-SCT-T10 | 10mm | 3000:1 | 5, 15, 30, 50, 75,80 | 0.5 , 1.0 |
XH-SCT-T16 | 16mm | 3000:1 | 50, 70, 100, 120 | 0.5 , 1.0 |
XH-SCT-T24 | 24mm | 3000:1 | 100, 150, 200, 300 | 0.5 , 1.0 |
XH-SCT-T36 | 36mm | 3000:1 | 300, 400, 500, 600 | 0.5 , 1.0 |
Pls contact me for much more information by Skype
My Skype:paul.duke188
Our products
Strong items
Certifications
Quality Control
Package Of 1000A/5A clamp on current transformer ct
Transportation
Contact detail
Contact Us
- Jiangyin Spark Electronic Technology Co., Ltd.
- Contact namezhende xu Chat Now
- Phone86-510-86271733
- AddressNo. 263, Dongwaihuan Road
