Home > Products > DP split core current transformer > DBP/DP CE 1000/5 split core ct split-core ac ct current transformer

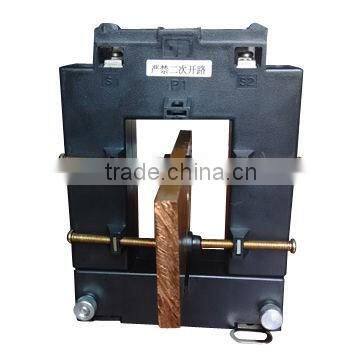

DBP/DP CE 1000/5 split core ct split-core ac ct current transformer
- 200000 Piece / Pieces per Month
- shanghai
- Credit Card
You May Like
-
DBP/DP CE 5A busbar type transformador de corrente split-core
-
DBP/DP CE 5A busbar type transformador de corrente split core
-
DBP/DP CE 5A busbar type current sensor split-core ct
-
DBP/DP CE 5A busbar type current transducer split-core ct
-
DBP/DP CE 5A busbar type current transformer split-core ct
-
DBP/DP CE clamp-on ct split core current transducer 5a ct
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Jiangyin Spark | |
| Model Number | DBP/DP | Usage | Electronic | |
| Phase | Single | Coil Structure | Toroidal | |
| Coil Number | Autotransformer |
Product Description
Features Of DBP/DP CE 1000/5 split core ct split-core ac ct current transformer
Rated primary current: 100 to 5, 000A AC
Rated secondary current: 5 or 1A AC
Rated load: 1, 2.5, 5.0, 10 and 30VA
Accuracy: 0.5, 1.0 and 3.0 class
Rated short-time thermal current (Ith): 20In
Rated dynamic current (Idyn): 2.5Ith
Highest voltage for equipment (Um): 720V AC RMS
Rated power-frequency withstand voltage: 3, 000V AC RMS
Frequency range: 50/60Hz
Operating temperature: -15 to 60° C
Split core design, safer, easy to install and portable
Accessories: Supplied with feet for base mounting if required
Applications:
Current, power, energy and monitoring devices
Relay protection devices
Power factor correction devices
Available in 5 standard sizes
Standard: IEC 60044-1
RoHS Directive-compliant
Drawing Size Of DBP/DP CE 1000/5 split core ct split-core ac ct current transformer corrente split-core
