split core current transformer /100-400A/5A CE approved CTs

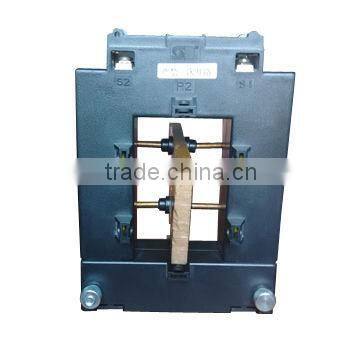

DBP Split Core CT 1A or 5A Output, split core current transformer

Jiangyin Spark The DBP series Split Core Current Transformer has been specially designed to facilitate their installation in new or already existing net works. They may be installed without opening any cable or bus-bar circuit. The connection of conventional CTs usually requires the interruption of the primary side circuit to pass cables or bur-bars through the transformer core or to connect such cables to the primary terminals. The DBP series transformers core may be easily opened and they may be installed and connected without any supply interruption. Thus saving time and the installation costs.

Features:

Rated primary current: 100 to 5, 000A AC

Rated secondary current: 5 or 1A AC

Rated load: 1, 2.5, 5.0, 10 and 30VA

Accuracy: 0.5, 1.0 and 3.0 class

Rated short-time thermal current (Ith): 20In

Rated dynamic current (Idyn): 2.5Ith

Highest voltage for equipment (Um): 720V AC RMS

Rated power-frequency withstand voltage: 3, 000V AC RMS

Frequency range: 50/60Hz

Operating temperature: -15 to 60° C

Split core design, safer, easy to install and portable

Accessories: Supplied with feet for base mounting if required

Applications:

Current, power, energy and monitoring devices

Relay protection devices

Power factor correction devices

Available in 5 standard sizes

Standard: IEC 60044-1

RoHS Directive-compliant
