India Wood Door Making 1530 CNC Router CNC Engraving/Milling Machine CNC Router with High Quality

India Wood Door 1530 CNC Engraving/Milling Machine with High Quality

Features:

1. T-slot Vacuum table with 6 vacuum zones, which can adsorb different size materials. You can also fix the work piece by clamp.

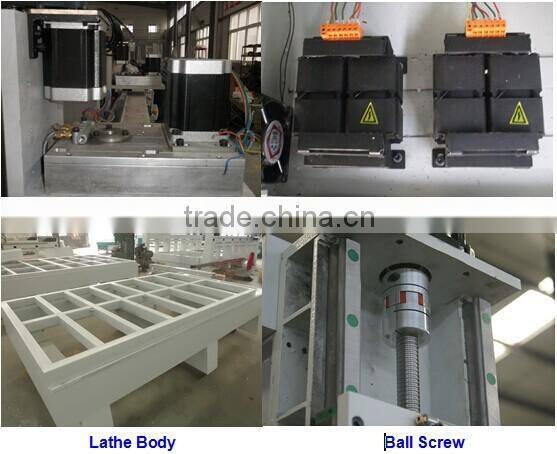

2.  Lathe bed welded with thick channel steels and square tubes; Processed by high temperature tempering treatment and vibrating stress relief (VSR) to reduce residual stress; Ensure excellent stability, not easy to be deformed.

3. Adopt Taiwan HIWIN high precision square rail; X and Y axes adopt rack and pinion transmission, fast working, high efficiency and low cost; Z axis adopts Germany-made ball screw,with high precision and long life time.

4. Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Wentai etc.

5. Has the function of re-carving after break point and power failure.

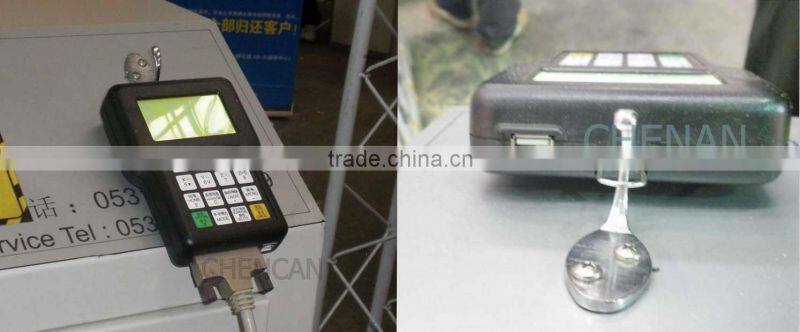

6. DSP system with USB interface, convenient operation. Off-line working, no need put a computer there.

7. Perfect lubricating system makes maintenance much easier.

8. Has duct-collect function. It will clean up the carving residuum and make the operations tidier and more convenient.

9.Advanced design of the machine make sure strong cutting and guarantee the engraving accuracy.

Application:

Our cnc router is widely used for general woodworking like cutting, milling, boring and engraving on various wood materails.

Sample:

Door Engraving

3D relief engraving

Milling

Cutting

Packing: Strong Plywood box for Sea shipment

Parameter:

Other Parts:

Samples:

Certificates:
