3D Multi Heads CNC Engraving Machinery
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
3.5KW Spindle Cnc Wood Engraving Machine Cnc Router Cnc Wood Carving Machine 1325
-
Economic Simple Cnc Router Machine CC-M1325B Series
-
Cnc Router Machine Woodworking
-
Small Cnc Engraving Machine 6090
-
Heavy Duty 1325 Carving Machine for Furniture CC-M1325A
-
2016 Hot Sale CNC Router for Wood With High Precision
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | CHENCAN | |
| Model Number | G6090B | Voltage | 220V/380V, AC220V 1-phase | |
| Power(W) | 9.0KW | Weight | 1800KG | |
| Certification | CE ISO | Warranty | 1 Year | |
| After-sales Service Provided | Overseas service center available |
Product Description
This machine is widely used in sign making,department nameplate,chest badge,architectural model,ABS plate, acrylic cutting,jade,glass marble and metal engraving.
Features:

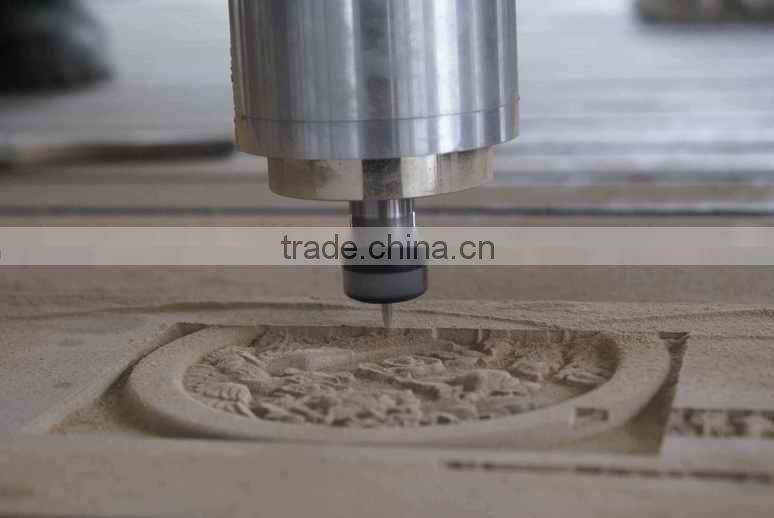

1. One spindle is used for engraving, cutting, milling or for drilling side hole on door for lock.

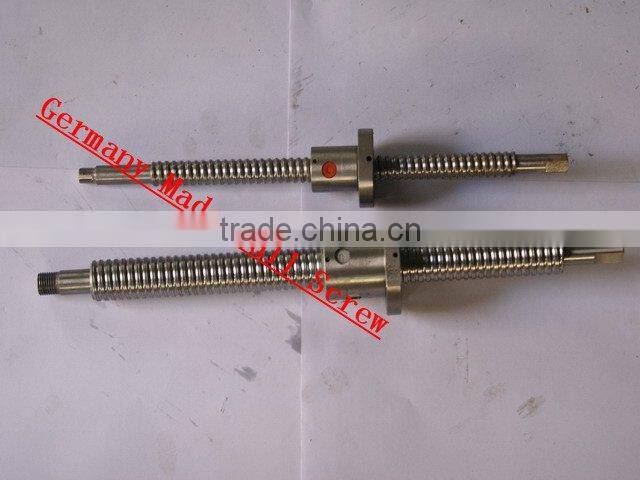

2. X Y Z axes adopt Germany-made ball-screw
3. Well compatibility: CAD/DAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.
4. DSP system with USB connection
Packing: Standard plywood box for export

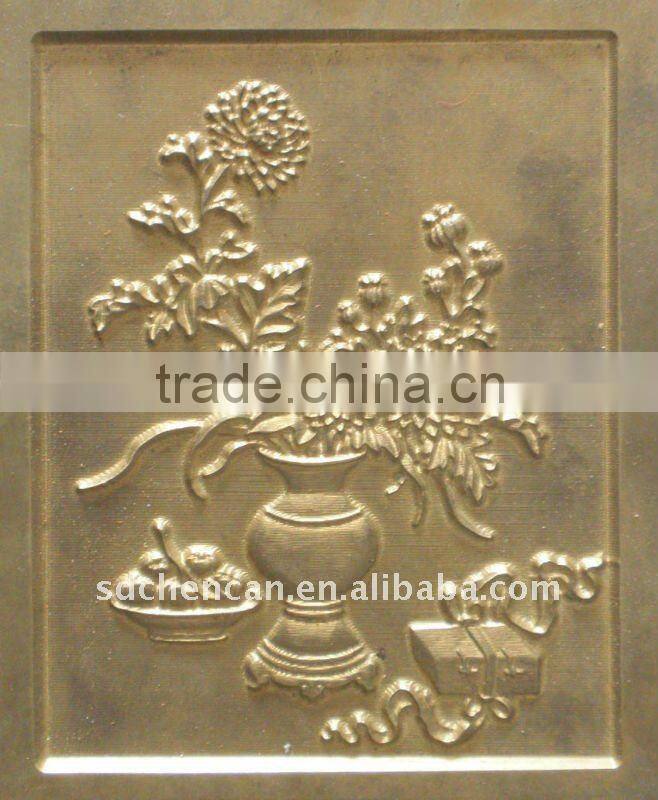

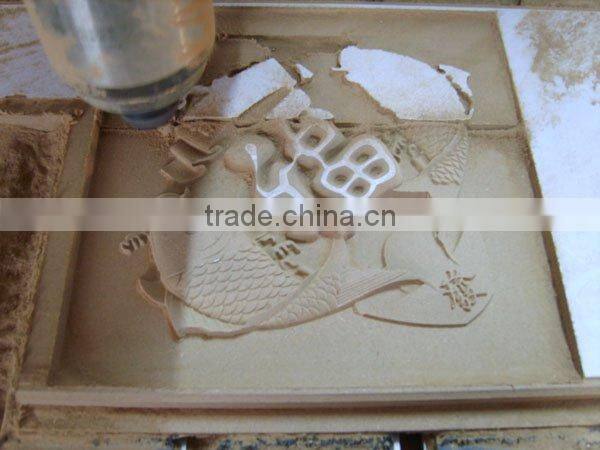

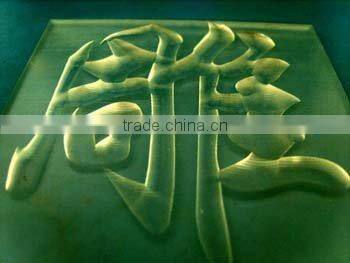

Samples
Parameter
Model | CC-G6090B | CC-G1323B | CC-G1218B | CC-G1224B | |
Lathe bed | Thick square steel | ||||
X Y working area | 600*900mm | 1300*2300mm | 1200*1800mm | 1200*2400mm | |
Table size | 720*1050mm | 1400*2600mm | 1300*2100mm | 1300*2700mm | |
Dimension | 1300*1000*1500mm | 2700*1600*1500mm | 2500*1500*1500mm | 3050*1500*1500mm | |
Working accuracy | 0.2mm | ||||
Spindle power | 1.5kw | 1.5/2.2kw | 1.5/2.2kw | 1.5/2.2kw | |
Max idling speed | 8 m/min | 14 m/min | 14 m/min | 14 m/min | |
Max feeding height | >80mm | ||||
Spindle speed | 24000 r/min | ||||
Control system | DSP Handle control(NC Studio optional) | ||||
Command language | G code, HPGL, U00, MMG,PLT | ||||
Diameter of collet | 3.175-12.7mm | ||||
Working mode | stepper | ||||
Package | Wooden case | ||||
Net weight | 250kg | 350kg | 400kg | 600kg | |
